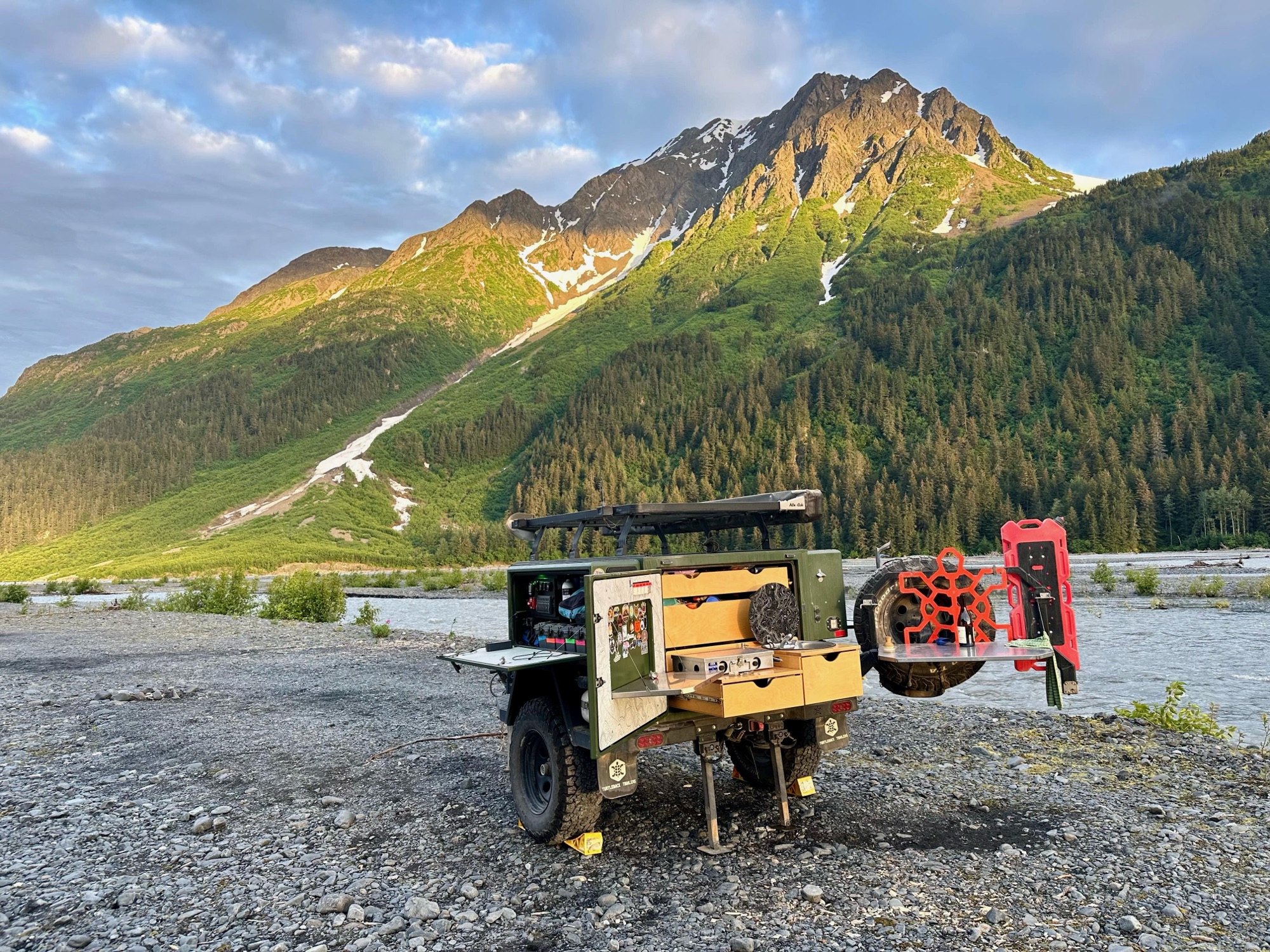

2021 Turtleback Expedition at a backcountry camp beneath snow-streaked mountains

A Piece of Turtleback History

First of Its Kind.
Ready for Yours.

A 2021 Turtleback Expedition with genuine production-prototype provenance, a complete mechanical rebuild, and the sorted, go-anywhere readiness that only comes from years of real field use.

  • First production Timbren HD 3500
  • First-ever Cruisemaster DO35
  • Maintained by Turtleback's field & product tester
Asking $22,000 Tempe, Arizona
Inquire About This Trailer Watch the Walk-Around
Alaska → Arizona

The Story

Not just a used trailer. A chapter in the Turtleback story.

What I'm selling isn't only a 2021 Expedition — it's the trailer Turtleback chose to field-test their most significant suspension and coupling upgrades before those parts ever reached production. This was the first Turtleback to ship on Timbren HD 3500 Axle-Less spindles, and the first trailer fitted with the Cruisemaster DO35 360° articulating coupler. Those aren't mods I bolted on later. They're milestones in the platform's evolution, and this is the trailer where they were proven.

Turtleback trusted me with that testing for a reason. I manage the Turtleback Owners Group, and I organized and ran the Turtleback herd events where owners gathered to camp, wrench, and share what they'd learned. Owners across the country still reach out when something goes sideways, when they're spec'ing a build, or when they just want an honest opinion. I mention it so you understand what it means for this specific trailer: it hasn't been kept by a casual weekend owner. It's been kept by someone who knows every fastener, every failure mode, and every upgrade path on a Turtleback.

Before it came to me, it was maintained directly by Turtleback in Arizona — the people who built it. That continuity of expert care is rare in the used market. Most trailers this well-traveled come with a story full of unknowns. This one doesn't.

In 2023 I replaced the suspension entirely. The shocks were just rebuilt and have under 5,000 miles on them. I reinforced the water heater mount — a known weak point I'd watched cause trouble for other owners — and relocated the Guzzle H2O purification system to a more secure, better-protected spot. Those are the fixes you only make when you know a platform deeply enough to see where it'll eventually let you down.

The Front Runner roof rack isn't stock; I specified it for weight savings and versatility. Two new BFGoodrich KO3 Load Range E tires are mounted and ready. A Goal Zero Yeti 1500X — 1,500 Wh with a 2,000-watt pure sine inverter — runs the electrical system, recharging off the truck, 100 watts of solar, or shore power. Simplified, reliable, and genuinely capable for multi-day base camping without the fragility of a hard-wired build. This trailer is dialed. I'm selling it because it deserves an owner who'll use it the way it was built to be used.

This was the test rig. The suspension and coupling upgrades Turtleback trusted enough to put into production — the Timbren HD 3500 and the Cruisemaster DO35 — were proven on this trailer first. Then I spent two more years making it better.
Keith KesslerTurtleback Owners Group · Herd Event Organizer · Field & Product Tester

I'm the field and product tester Turtleback relied on to validate new components before production, and I run the Turtleback Owners Group. Owners nationwide ask me for advice on their rigs. Buying from me means the most informed pre-purchase walkthrough you'll find for a Turtleback — and continued access to the person who knows this platform better than anyone outside the factory.

The Gallery

Every Angle, Every Detail

Two sets: the rig out on real trips, and a full walk-around shot today at Canyon Lake. Click any photo to enlarge.

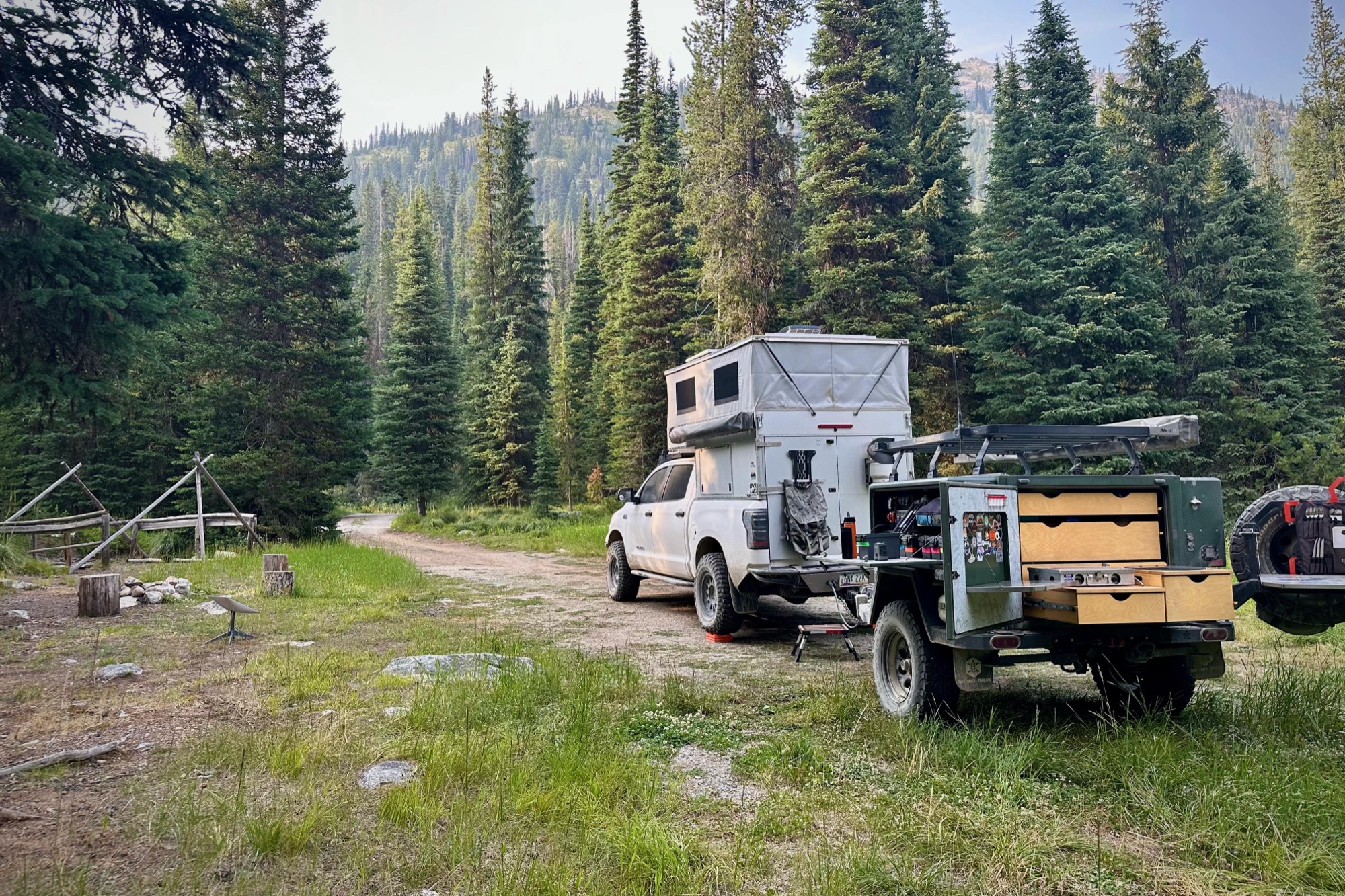

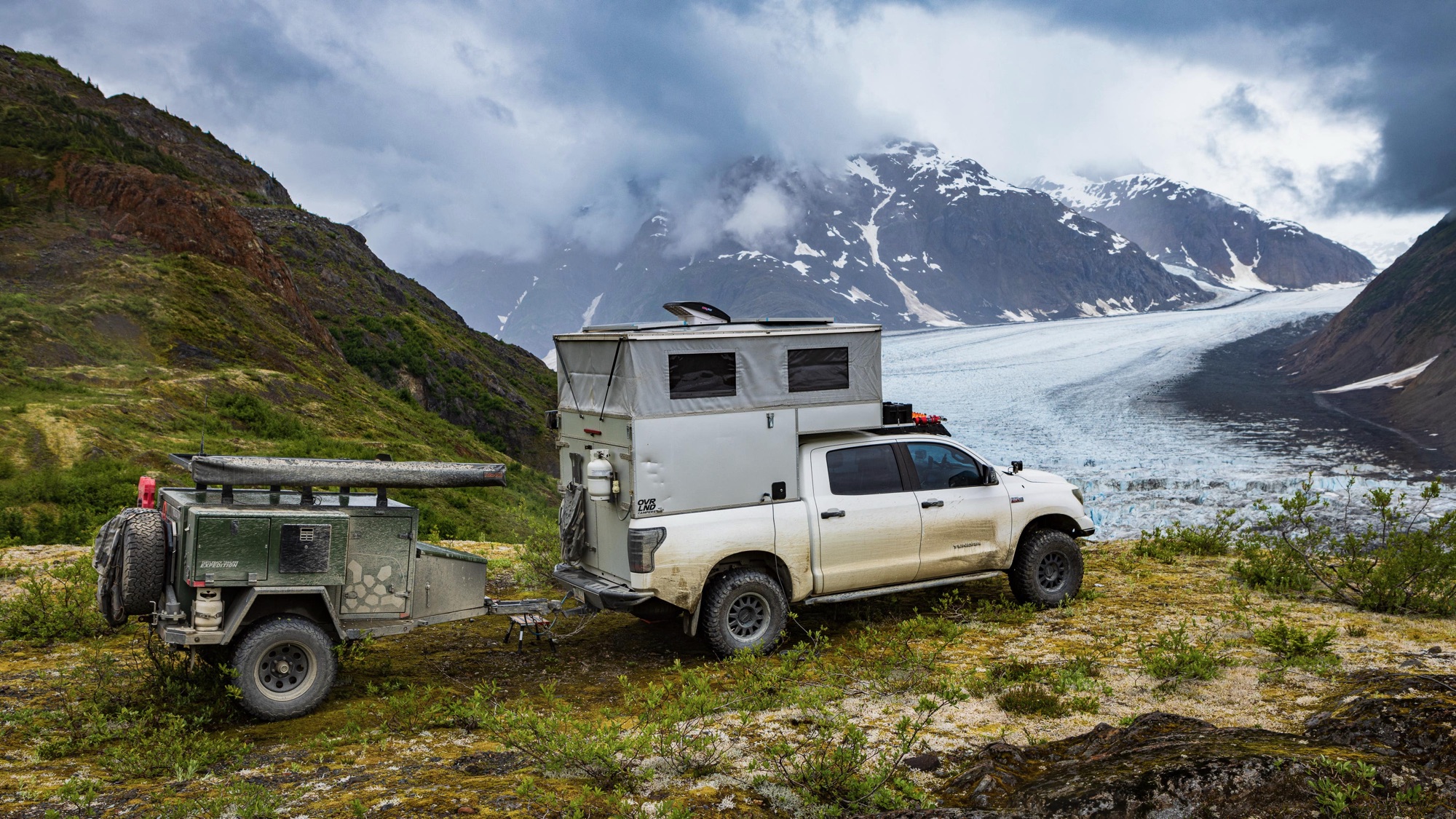

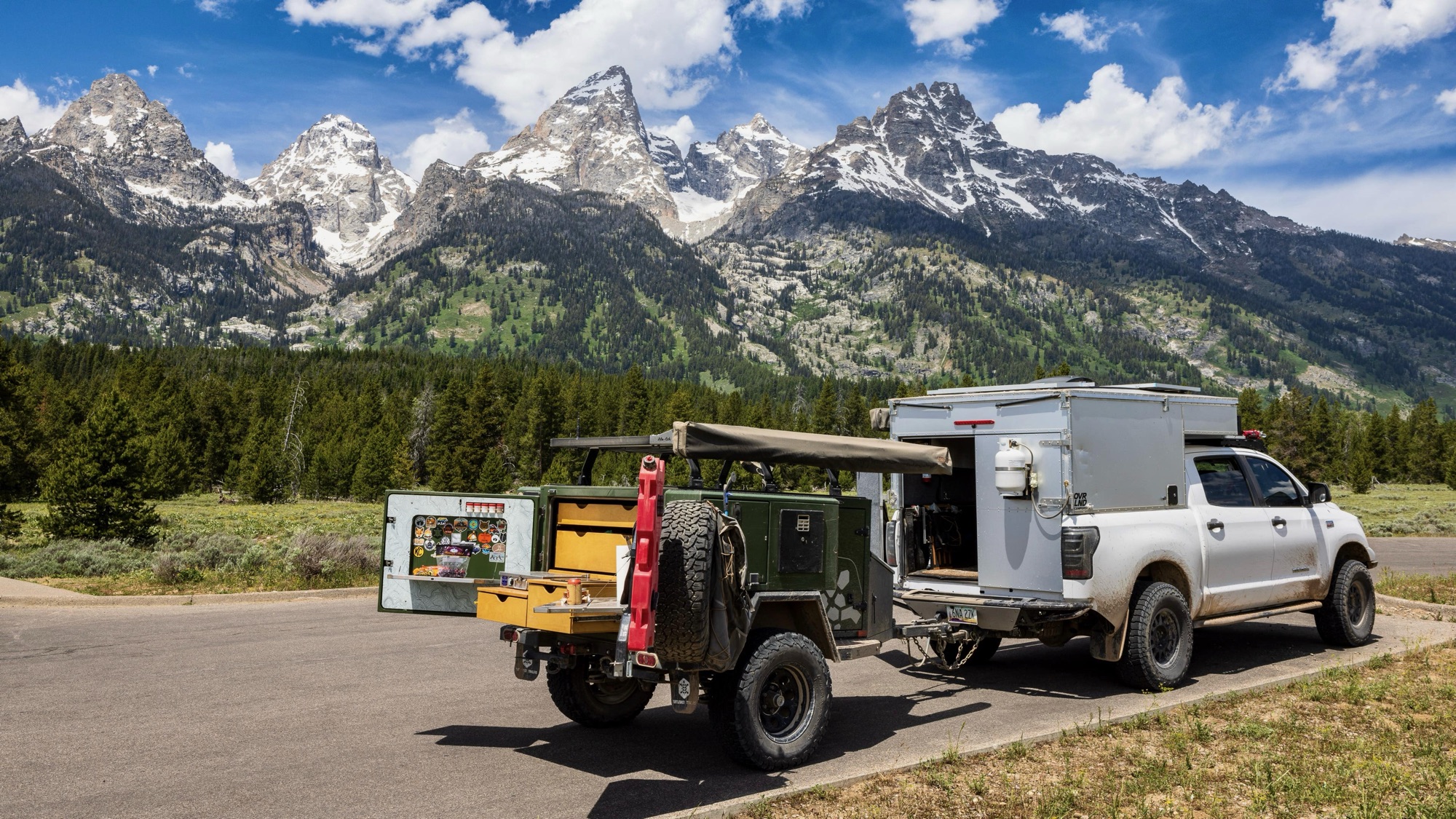

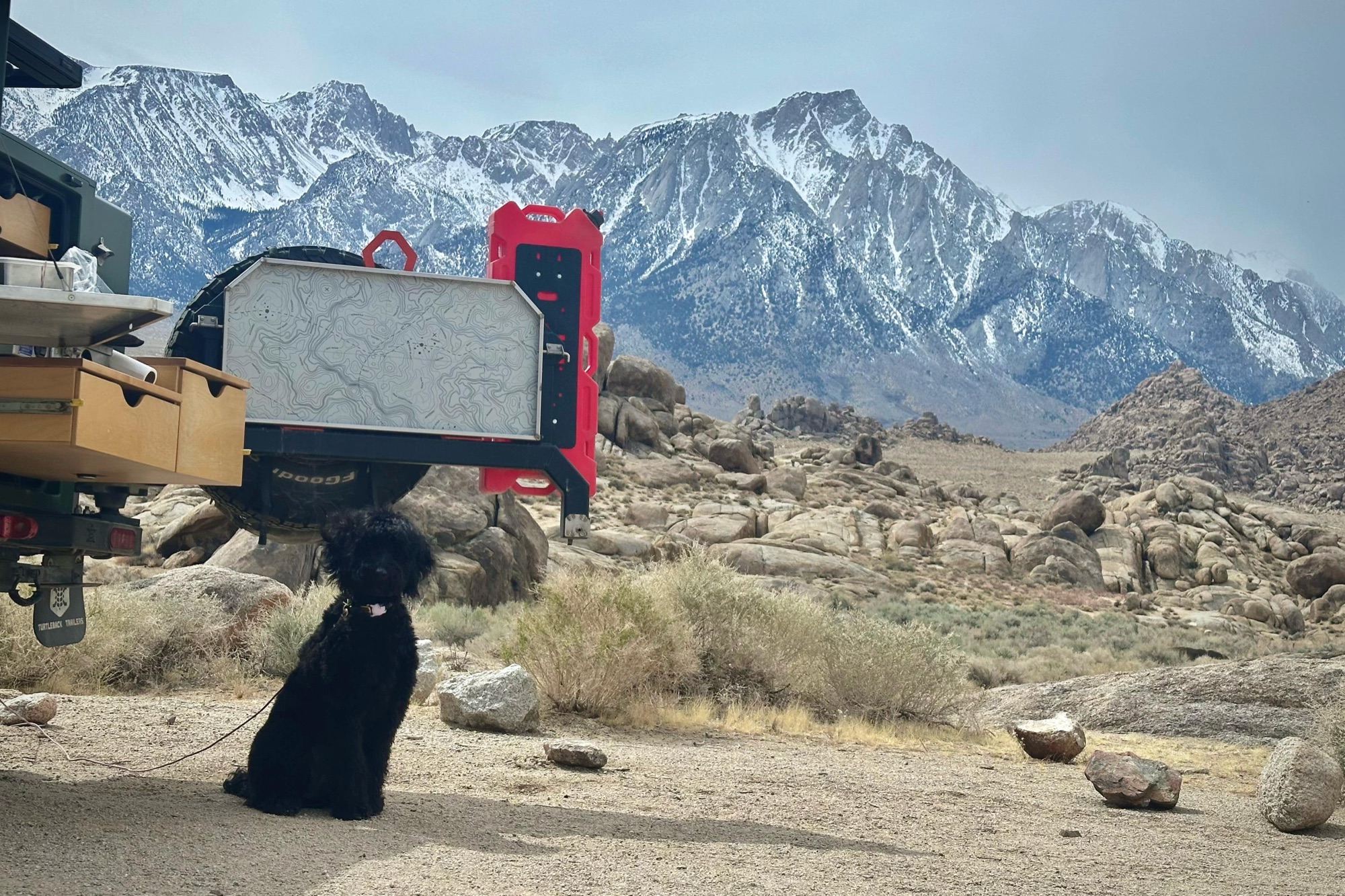

On the Trail9

Four years of real expeditions — Alaska to Arizona, and a lot of country in between.

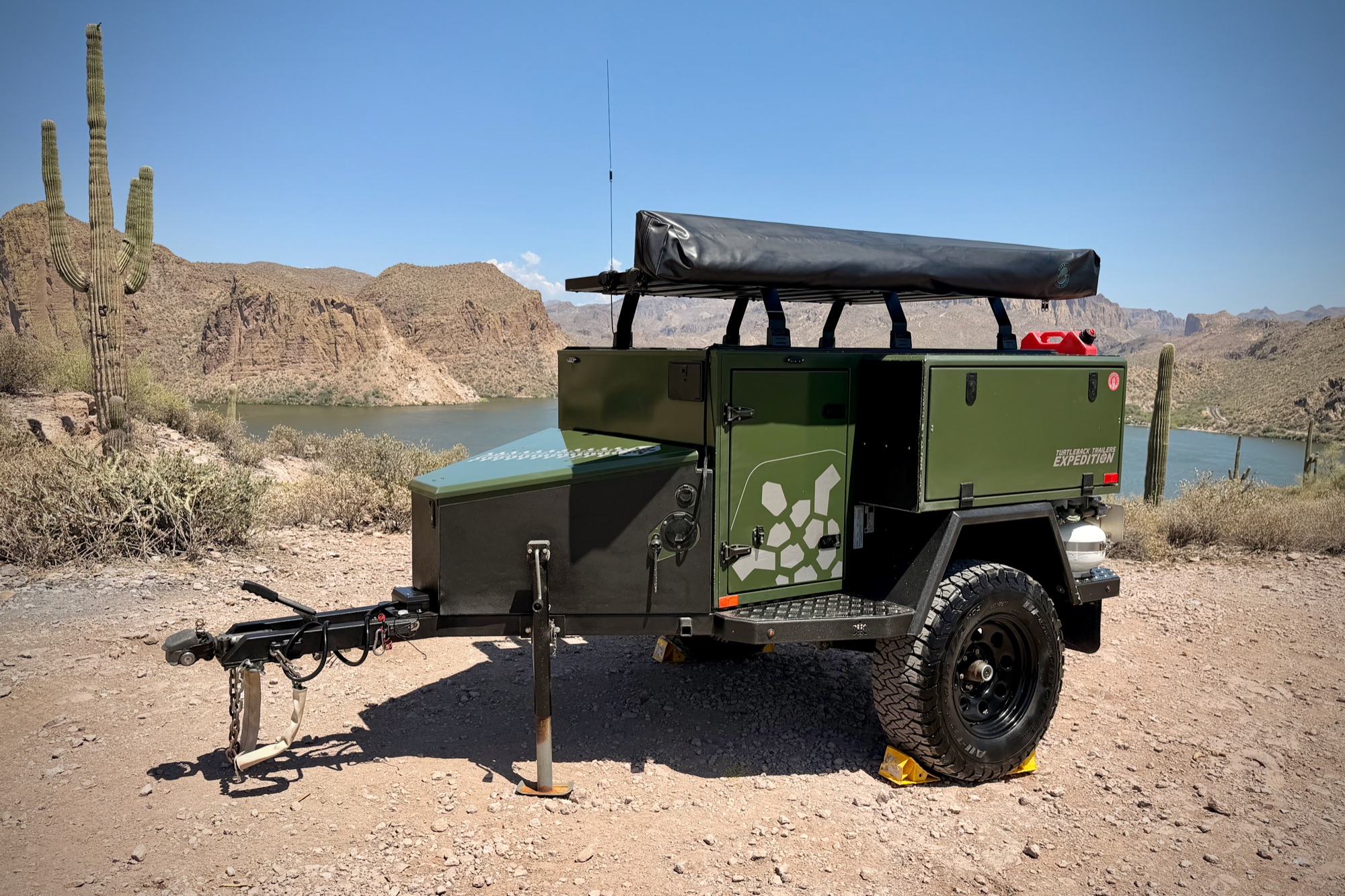

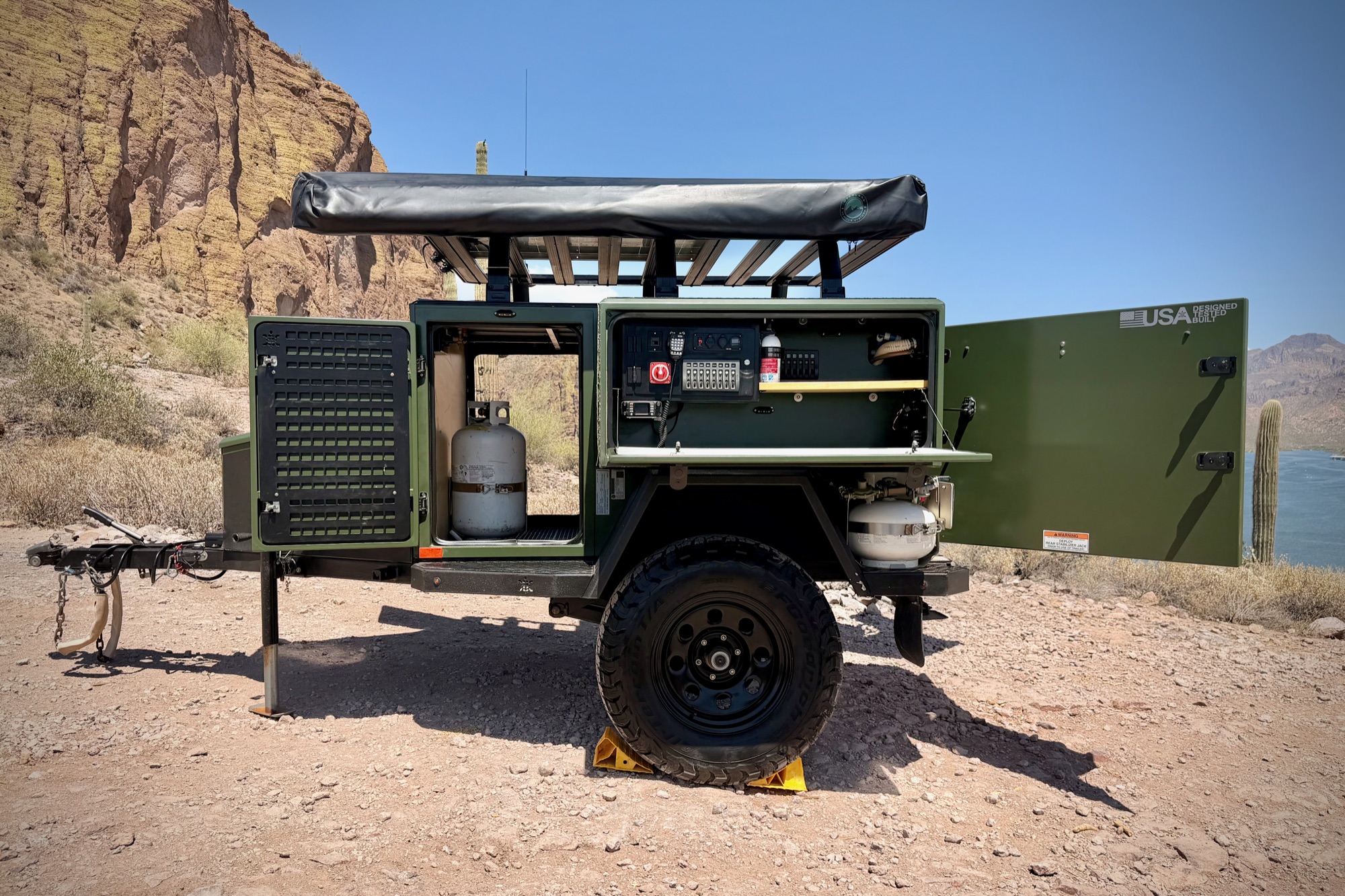

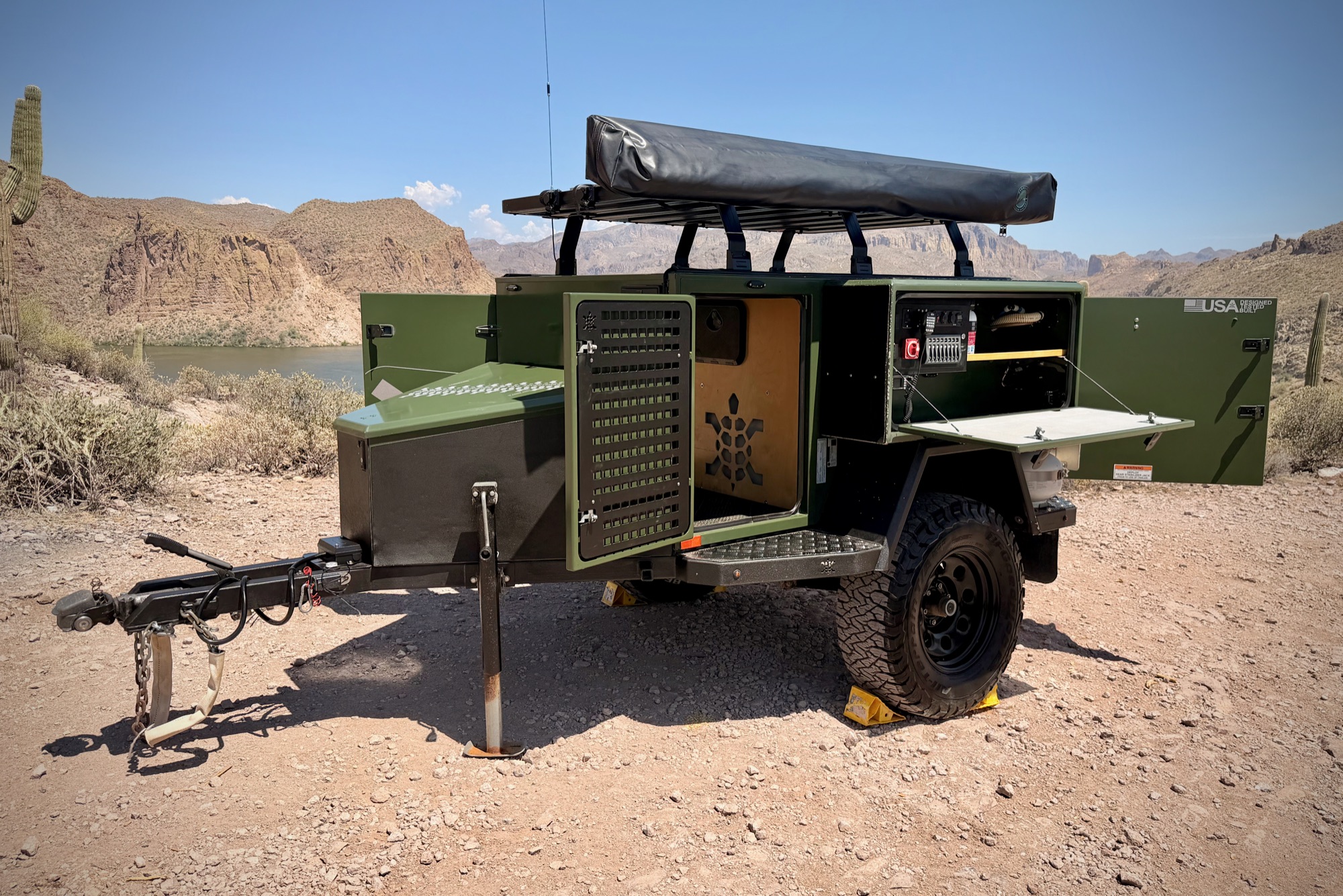

Walk-Around · Canyon Lake37

Shot today in one deliberate lap around the trailer — follow along to move around the rig and into every compartment.

See It Move

The Full Walk-Around

A complete tour of the trailer — systems, storage, and every detail up close.

Signature Upgrades

First-in-class hardware, sorted by the brand's tester.

Two of these were genuine production firsts. The rest are the deliberate upgrades and fixes that come from knowing exactly where a platform needs help.

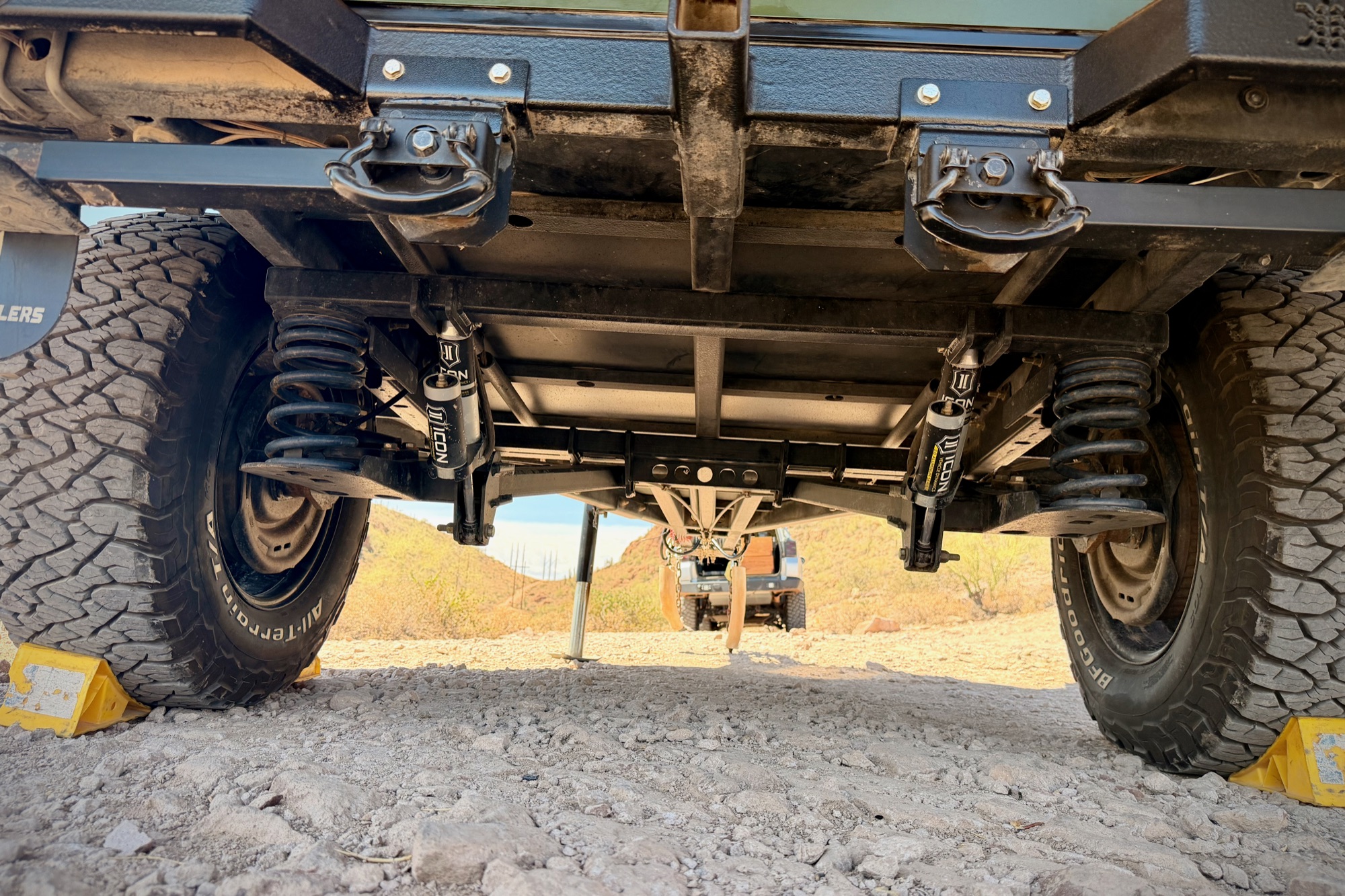

First Production

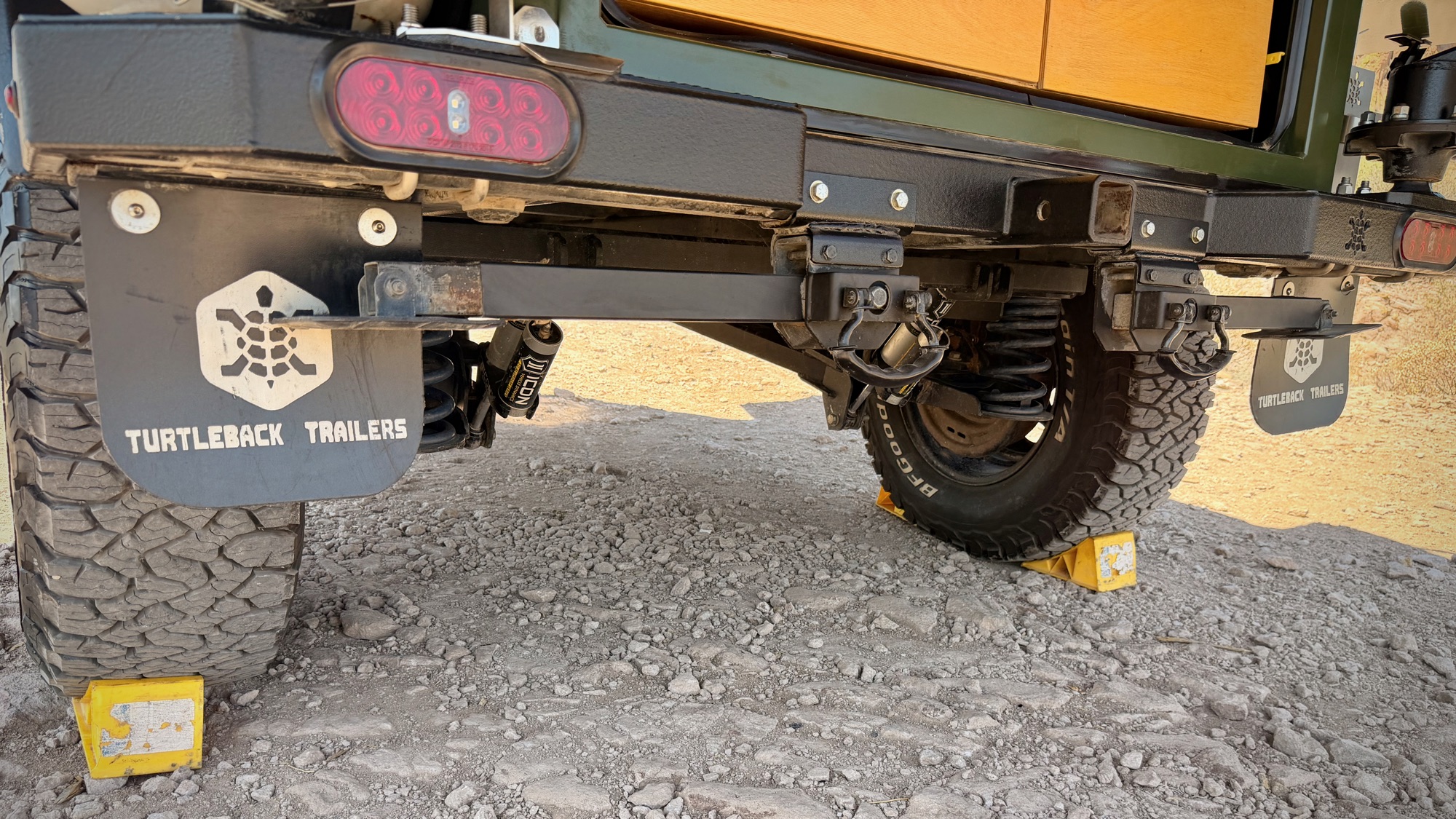

Timbren HD 3500 Axle-Less Spindles

First production trailer ever shipped on this setup.

Timbren's Axle-Less system replaces a solid axle with independent spindle arms bolted straight to the frame, each riding on a self-contained Aeon rubber spring rated to 3,500 lb. This was the first production Turtleback to ship on the heavy-duty 3500 variant.

Why it mattersA solid axle sends every jolt from one wheel straight across to the other — and into your gear. Independent suspension lets each wheel work the terrain on its own, smoothing the ride and keeping rubber on the ground over uneven ground. No axle tube means dramatically more belly clearance over rocks and ruts, and there's no single buried bearing that can take out both wheels at once.

First Production

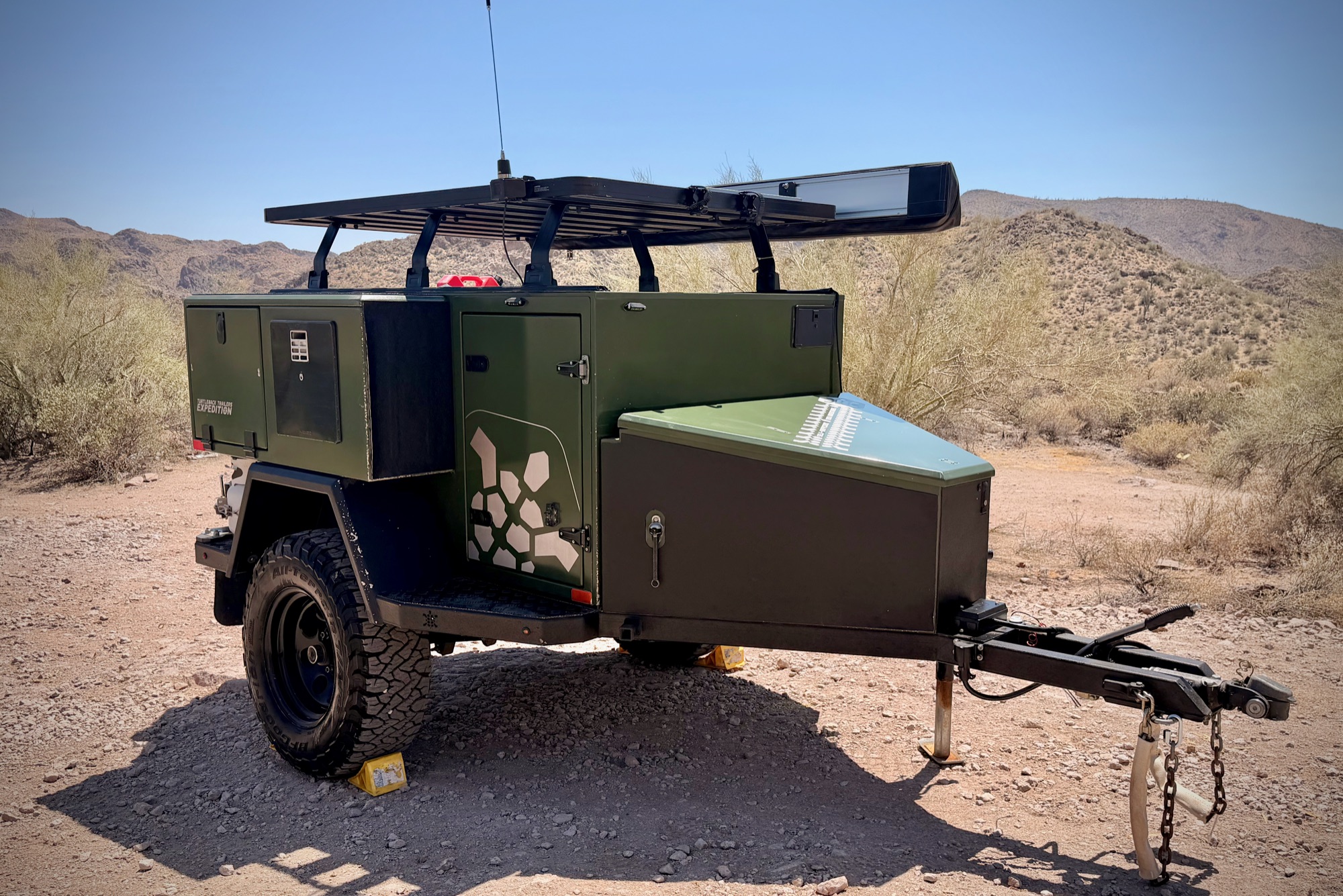

Cruisemaster DO35 Off-Road Coupler

360° articulation — the first Turtleback ever fitted with one.

The DO35 is an off-road-specific articulating coupler rated to 3,500 kg that replaces a fixed ball or lunette. Its poly-block pivot allows full 360° rotation between truck and trailer, absorbing twist, pitch, and roll independently of the tongue.

Why it mattersA ball hitch transmits torsional stress straight into the trailer frame every time the truck and trailer are on different planes — exactly what happens on every rocky trail, and exactly what fatigues welds over time. The DO35 decouples that stress entirely, keeping the trailer tracking true on ledges and off-camber lines while all four contact patches stay planted.

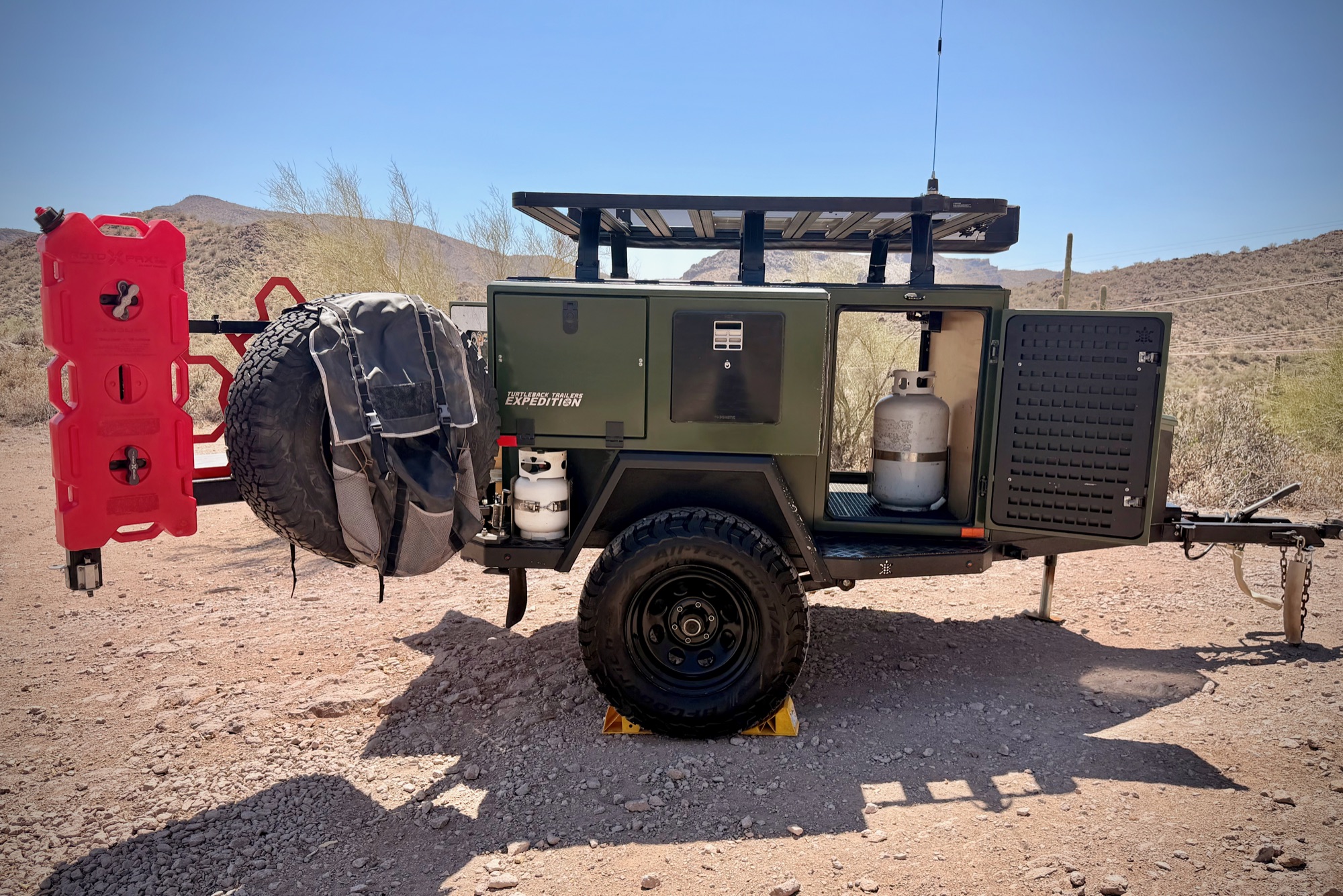

Front Runner Roof Rack

Lightweight, modular aluminum — built for gear that has to get there.

A Front Runner Slimline-style aluminum rack replaces the stock top carrier. The open-bar design minimizes weight and wind resistance while providing a fully modular mounting grid for Front Runner's accessory ecosystem.

Why it mattersThe open slat design sheds weight versus a steel rack and reduces drag — which matters when you're already towing. The T-slot interface accepts dozens of purpose-built accessories without drilling or fabricating, and aluminum shrugs off the salt air and wet that rusts a steel rack within a season. For a mobile base camp, a roof you can reconfigure trip to trip is genuinely useful, not just good-looking.

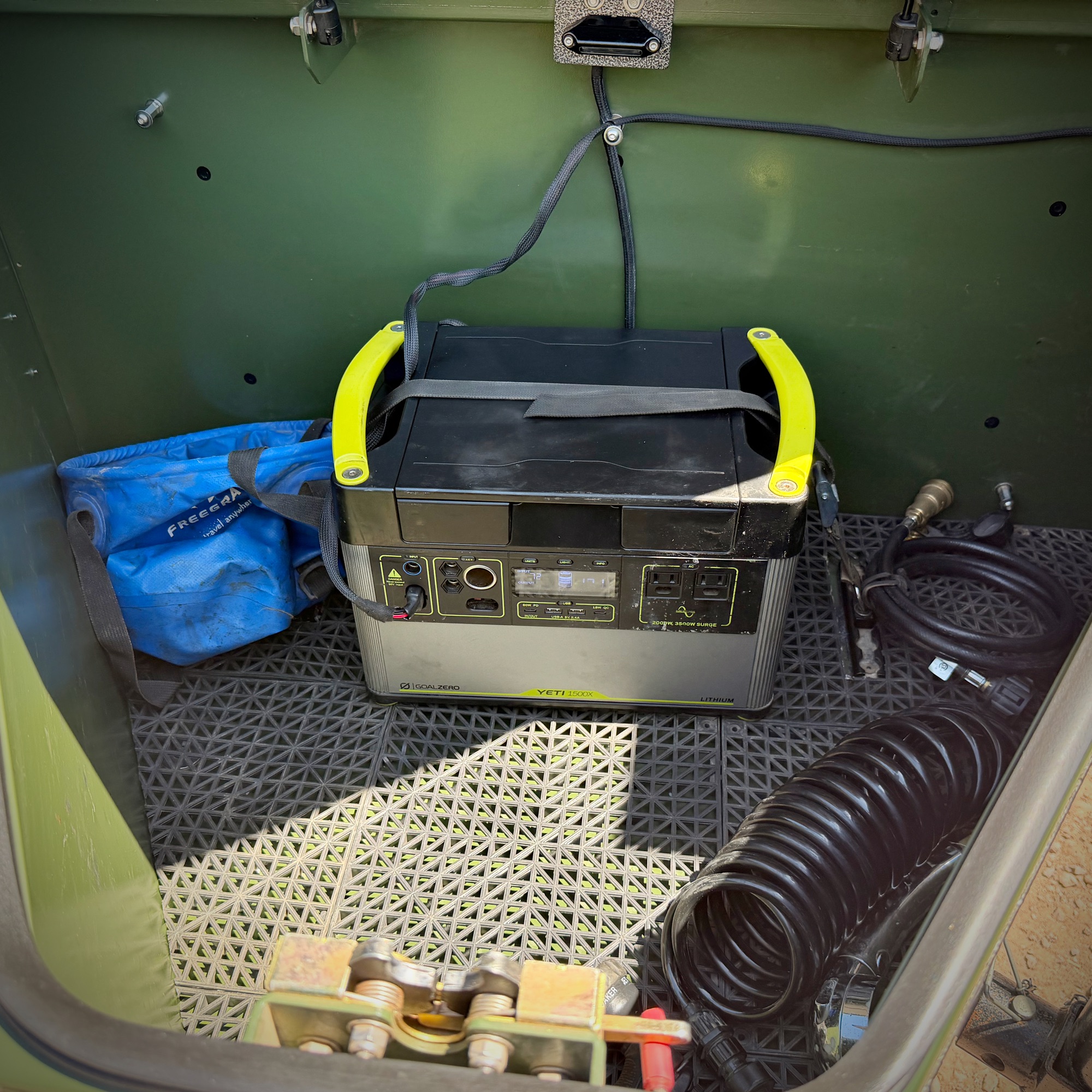

Goal Zero Yeti 1500X Power System

1,500 Wh, 2,000 W pure sine — and three ways to recharge.

The electrical system is built around a Goal Zero Yeti 1500X (1,500 Wh) with a 2,000 W pure sine wave inverter and a live capacity display. It recharges three ways: a 10A DC-to-DC charger off the tow rig (via the 7-pin), a 100 W Renogy rigid solar panel on the roof rack, and 10A shore power. It's the trailer's entire power hub — removable, standalone, and independently serviceable.

Why it mattersFixed 12V wiring is notoriously hard to diagnose when it fails — and on a trailer that sees real off-road miles, it eventually does, usually 60 miles from pavement on a Friday night. Building around the Yeti sidesteps that fragility: it's self-contained, its charge is on the display at all times, and a clean 2,000 W pure sine output runs real appliances without the hum or harmonics of a cheap inverter. With DC-to-DC, solar, and shore charging all wired in, you top off however the trip allows — and if it ever needs service, you pull it out without touching the trailer's structure.

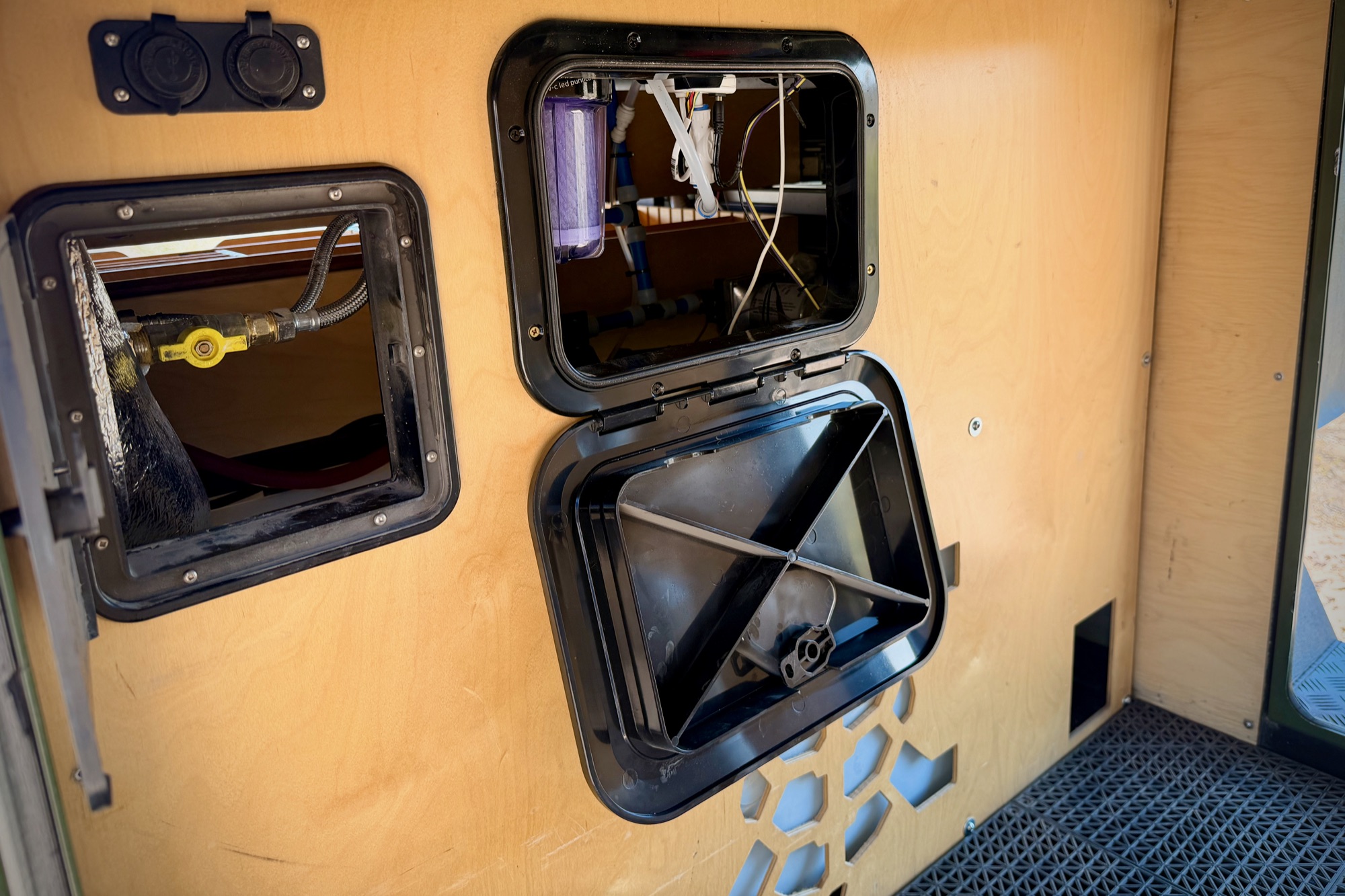

Guzzle H2O Filtration & Purification — Relocated

Potable water from any source — now mounted where it won't shake apart.

The Guzzle H2O system filters and purifies water from streams, lakes, or questionable fill stations so it's safe to drink. On this trailer it's been relocated from its stock position to a more secure, purpose-built mount.

Why it mattersThe stock position exposed the system to vibration and lateral loading it wasn't built to take on rough trails — a failure mode owners discovered the hard way, on the trail. I'd seen it firsthand and understood the fix: the new mount is more secure, better protected, and far easier to access for field filter swaps. Being able to fill from a backcountry source and drink confidently means you carry less water weight and your range stops depending on the nearest potable tap.

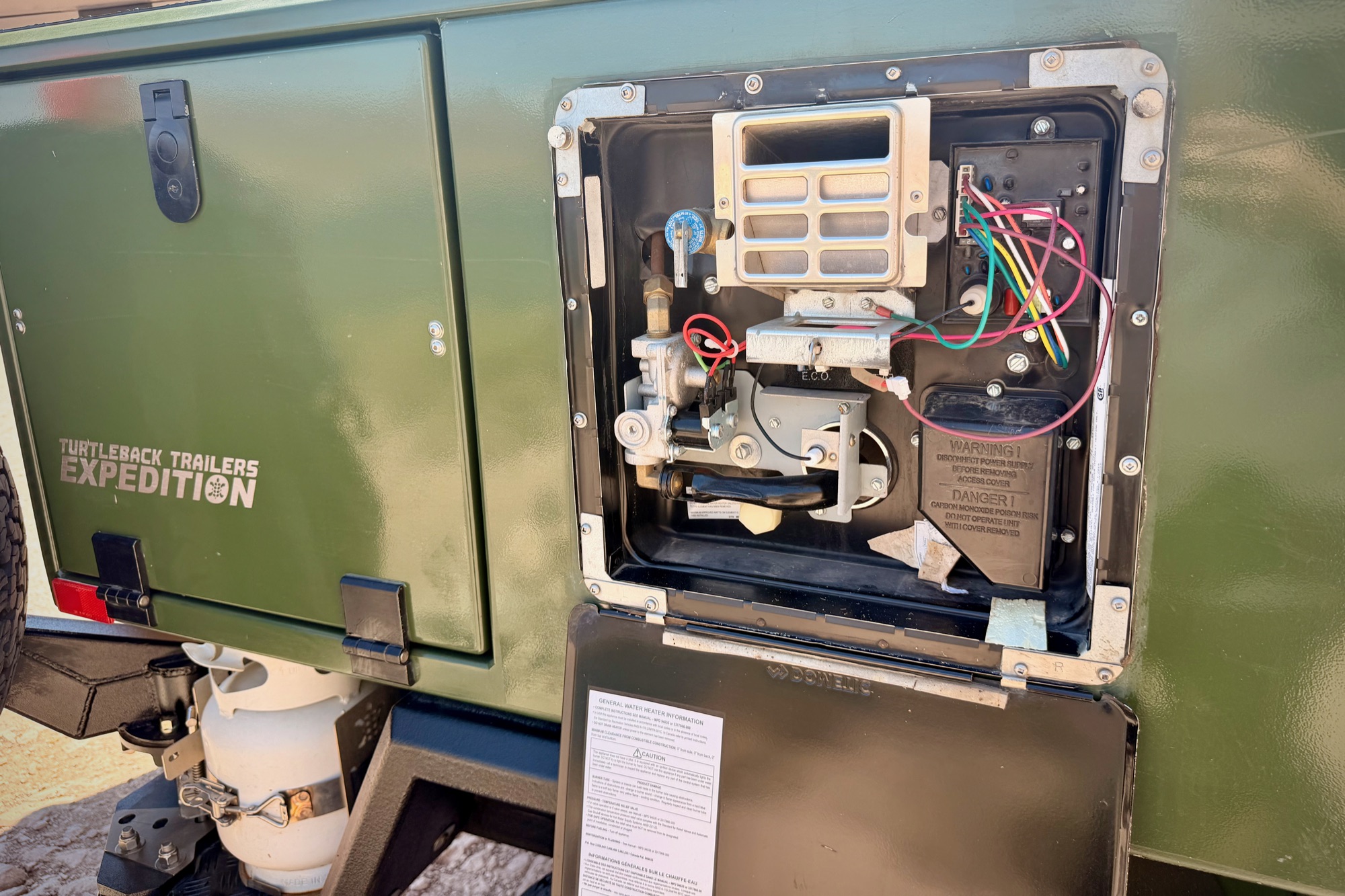

Reinforced Water Heater Mount

A known weak point — fixed before it failed, not after.

The factory water-heater mount used hardware and bracket geometry that proved insufficient for sustained off-road vibration. This trailer's heater has been remounted with reinforced hardware and bracket work that eliminates the failure mode.

Why it mattersWater-heater mount failures were a documented pattern in the owner community — a recurring field-repair item I saw repeatedly as Turtleback's tester. A failed mount lets the heater move under load, stressing the water connections and propane line: anywhere from a nuisance leak to a real safety issue. This one was reinforced proactively and correctly. You get a heater that's secure — not a maintenance item waiting to surface on a trip.

Complete Suspension Rebuild (2023)

Every wear component replaced — fresh suspension in a seasoned chassis.

In 2023 the entire suspension was replaced — bushings, mounts, and related wear components swapped, not patched. A ground-up rebuild of the running gear, not a spot repair.

Why it mattersOn a used trailer that's seen real trail miles, suspension wear is the biggest unknown a buyer faces. A complete 2023 replacement removes that uncertainty: you know exactly what condition the suspension is in because it was effectively new three years ago. Paired with the Timbren Axle-Less geometry, the underpinnings are in a known, verified state — ready for backcountry use the day you take it home.

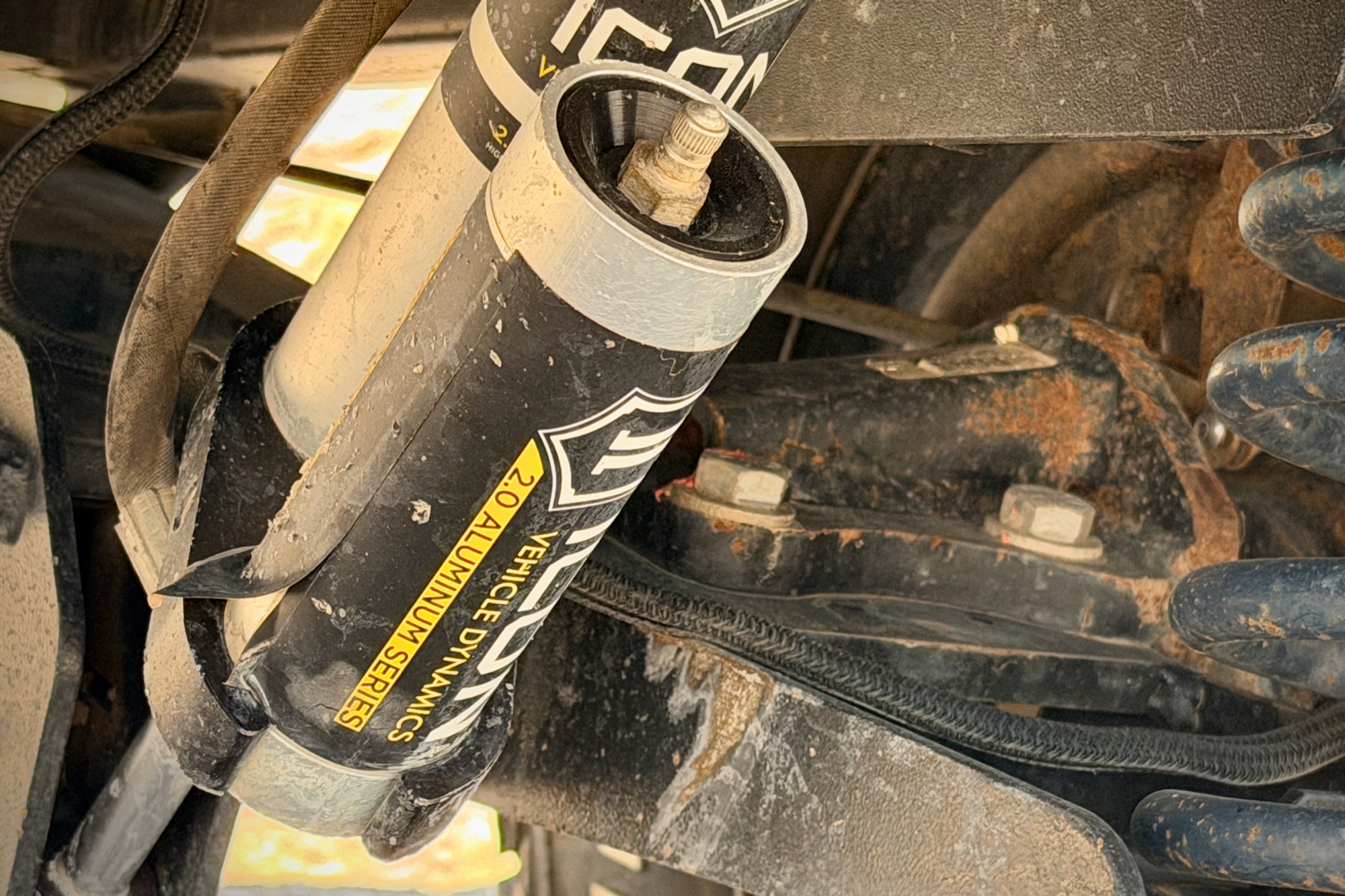

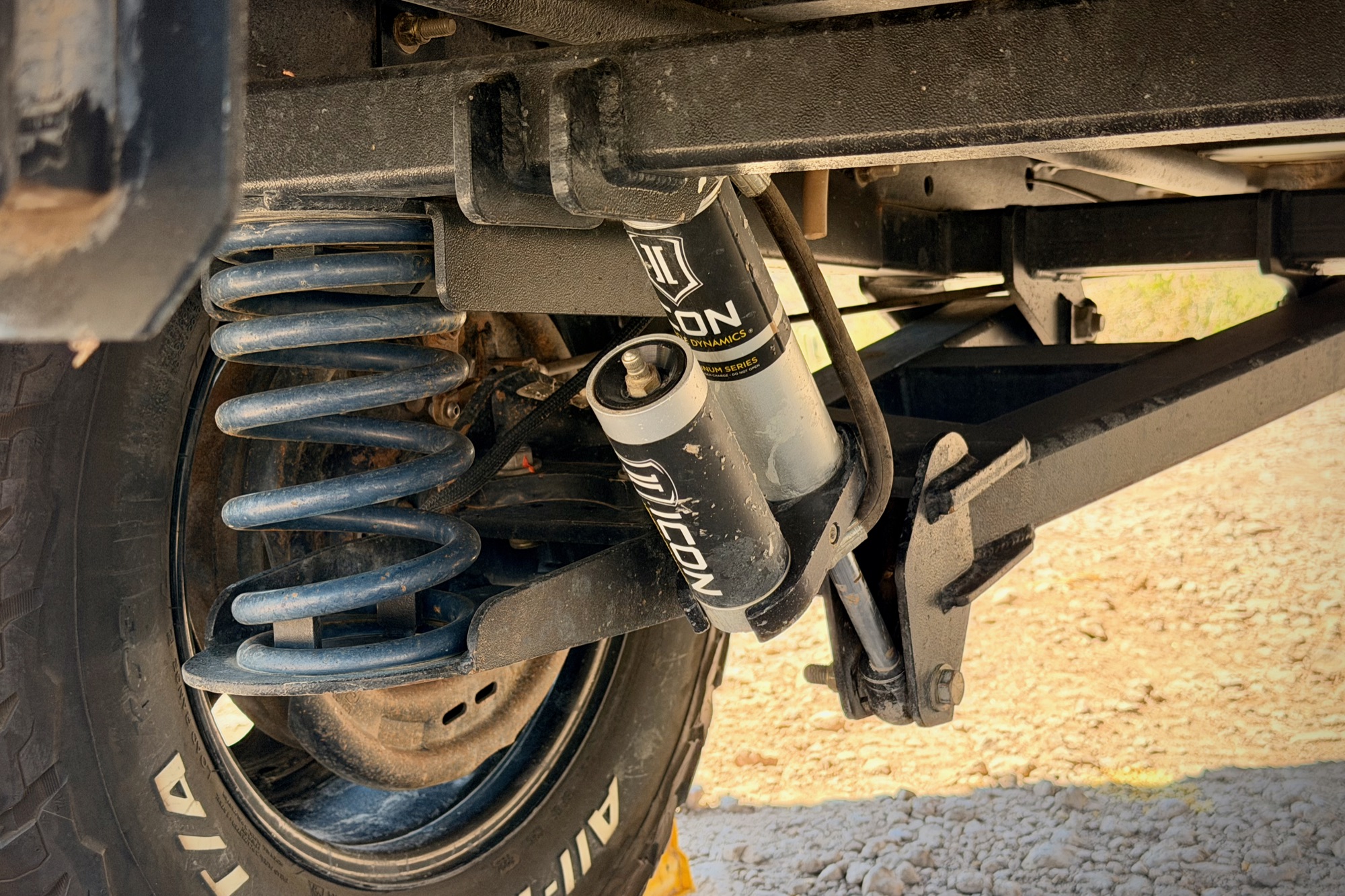

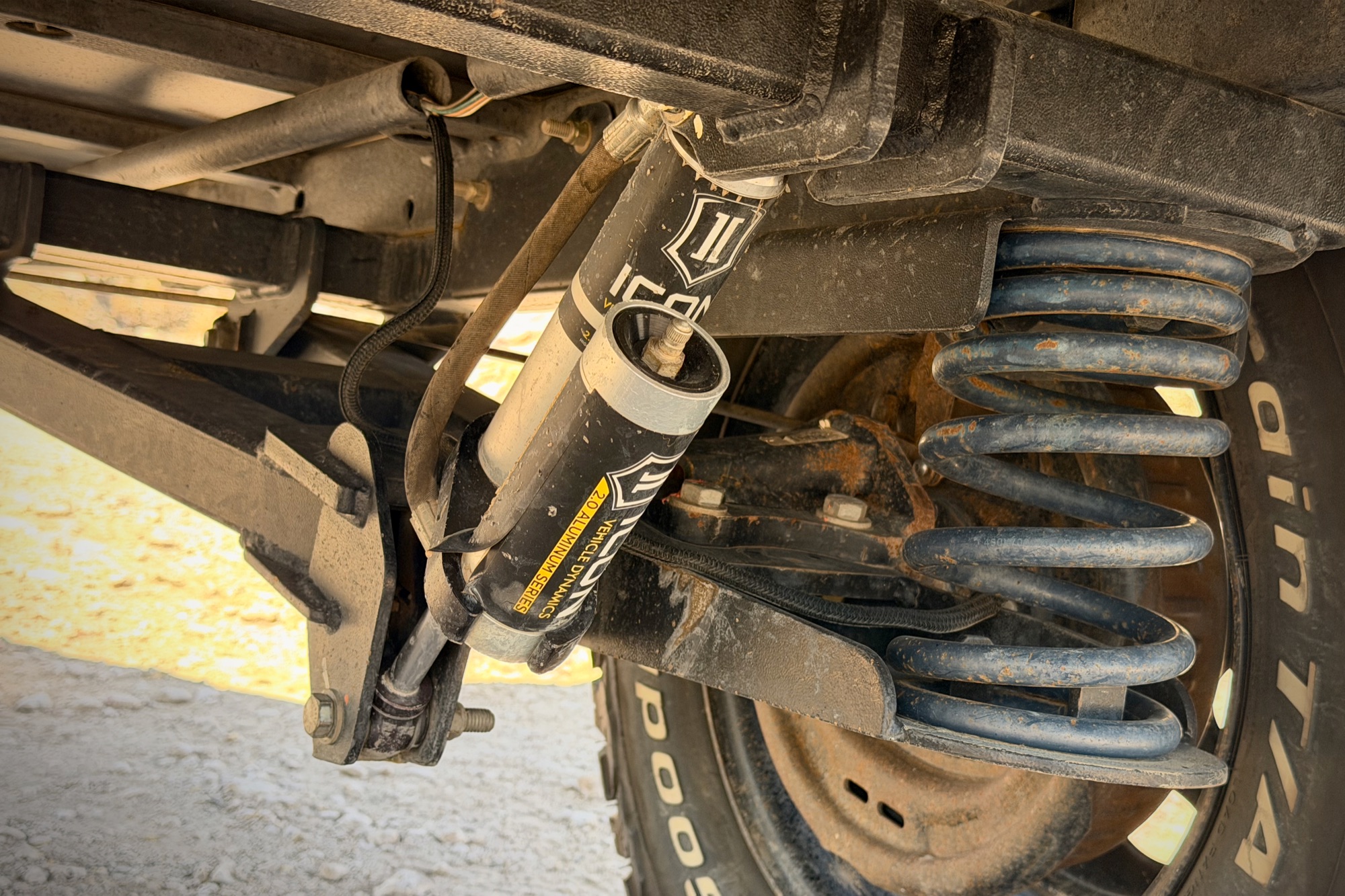

Professionally Rebuilt Shocks (~5,000 mi)

Like-new damping on shocks that have already proven themselves.

The shocks have been professionally rebuilt — fresh seals, fluid, and valving returned to spec — and have roughly 5,000 miles on them since.

Why it mattersA rebuilt shock from a good shop performs like new, but on a trailer used hard in real conditions, these have already proven their mounts and travel. At 5,000 miles post-rebuild they're fully broken in and nowhere near end of life. Shocks are the consumable every used-trailer buyer wonders about — here the answer is clean: freshly rebuilt, low miles, properly matched to the Timbren geometry.

Carries Its Own Spare Drivetrain

A complete second set of running gear — rebuild a corner on the trail.

The Timbren 3500 HD spindles are the field-replaceable bolt-on design, and the trailer comes with a complete second set of them — plus a second set of Icon shocks (freshly rebuilt), two sets of wheel bearings already packed and vacuum-sealed, and a spare wheel hub.

Why it mattersIndependent suspension is only as good as your ability to fix it far from a shop. Because the Timbren spindles bolt on, a damaged corner becomes a trailside repair instead of a flatbed call — and this trailer hands you every part to make it: spindles, shocks, sealed bearings, and a hub. That's the difference between a ruined trip and a long lunch. It's the kind of redundancy you only build after you've been the one stranded.

BFGoodrich KO3 Tires — Load Range E

New 285/70R17 rubber on 17-inch steel — and it runs your truck's spare.

Two new BFGoodrich All-Terrain T/A KO3 tires in 285/70R17, mounted on 17-inch steel wheels in the Toyota 6-lug pattern — the current generation of BFG's benchmark all-terrain, with updated sidewall protection and compound.

Why it mattersRunning the Toyota 6-lug pattern is a quiet but real advantage: trailer and tow vehicle can share wheels and tires, so one spare covers both and you can rotate rubber across the whole rig. The KO3 is the proven overland all-terrain — tough sidewalls for shelf-road rocks, predictable manners on the highway. New tires are new tires: no guessing about age, UV, or prior damage. With the rebuilt suspension, the rolling gear here is genuinely fresh.

Bedlined Chassis & Olive Drab Build

A finish built to get hit — in a colorway that doesn't look like everything else.

The chassis is coated in a Line-X-style spray-on bedliner — the same material used in truck beds to resist abrasion, impact, and corrosion. The body is finished in olive drab, a matte military green, with a burnt-orange accent on the turtle emblem.

Why it mattersBare frames corrode; painted frames chip, and chips corrode. Bedliner is a different animal: it absorbs rock strikes that would chip paint, seals the substrate against moisture, and needs no touch-up because minor abrasion vanishes against the texture. On a trailer that drags through brush and bounces through creek crossings, it's the correct finish — and the matte olive hides trail dust and scuffs that would make a gloss build look thrashed after a weekend.

The Numbers

Specifications

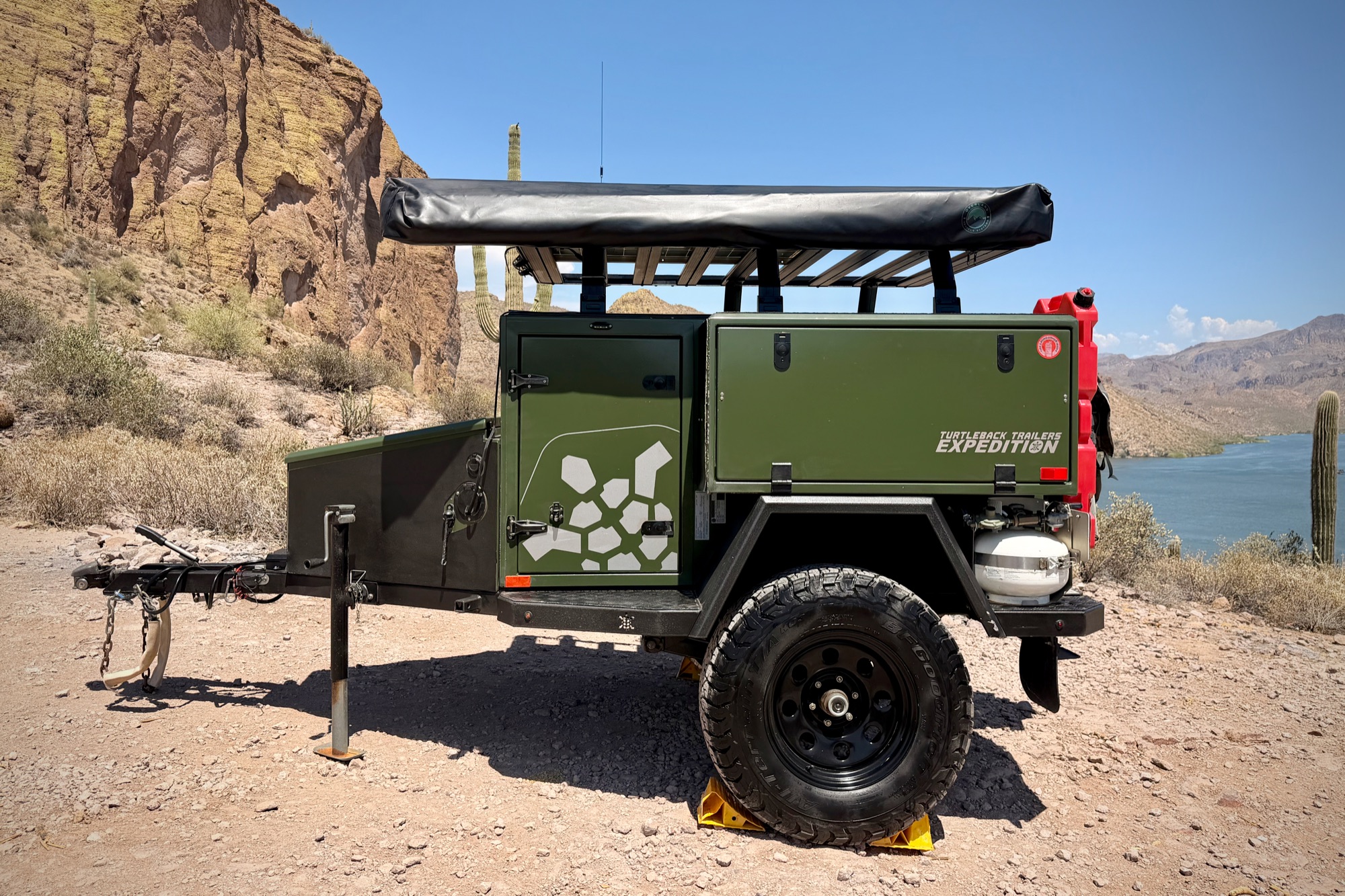

Dimensions & Weights

Length (exterior)
154 in · 12 ft 10 in
Width (exterior)
75 in · 6 ft 3 in
Overall height (no tent)
66 in · 5 ft 6 in
Ground clearance
18+ in
Dry / base weight
≈ 1,850 lb
GVWR
3,250 lb
Tongue weight (static)
≈ 300 lb

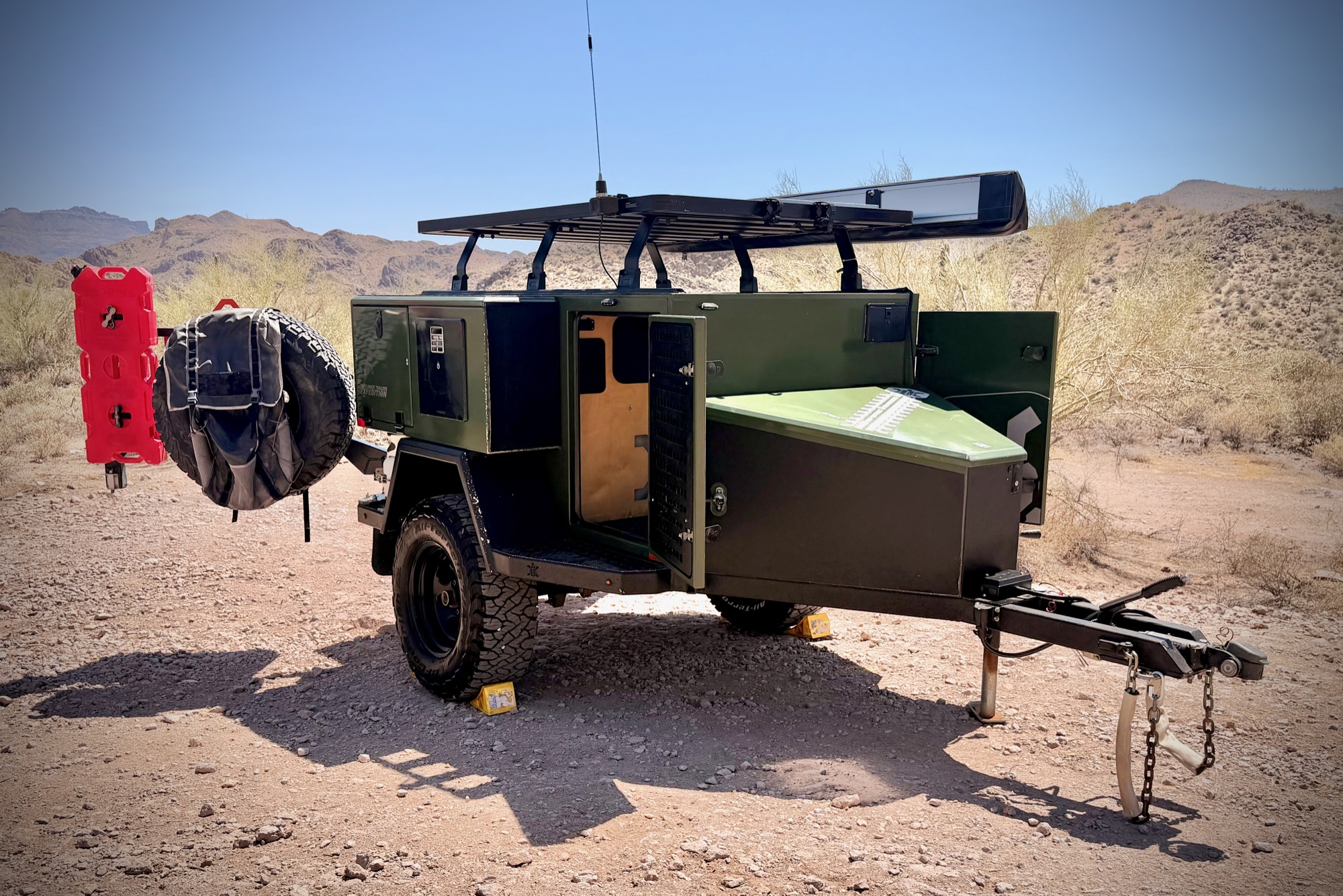

Coupler & Towing

Coupler
Cruisemaster DO35 off-road coupler
Handbrake
Cruisemaster handbrake
Articulation
360° axial rotation; multi-axis pitch & roll
Coupler rating
3,500 kg (3.5 T)
Brakes
Electric drum + breakaway switch
Tow vehicle
Mid-size 4x4 and up recommended

Suspension & Chassis

Spindles
Timbren 3500 HD — field-replaceable bolt-on
Rating
3,500 lb (HD series), axle-less independent
Shocks
Icon — new, ≈ 5,000 mi
Service history
Full suspension replaced 2023
Frame
Welded steel tube
Chassis finish
Line-X-style bedlined black
Body finish
Olive drab; burnt-orange turtle emblem

Tires & Wheels

Tires
BFGoodrich All-Terrain T/A KO3 (2 new)
Size
285/70R17
Load range
Load Range E
Wheels
17 in steel · Toyota 6-lug
Spare
Full-size spare on swing-away carrier

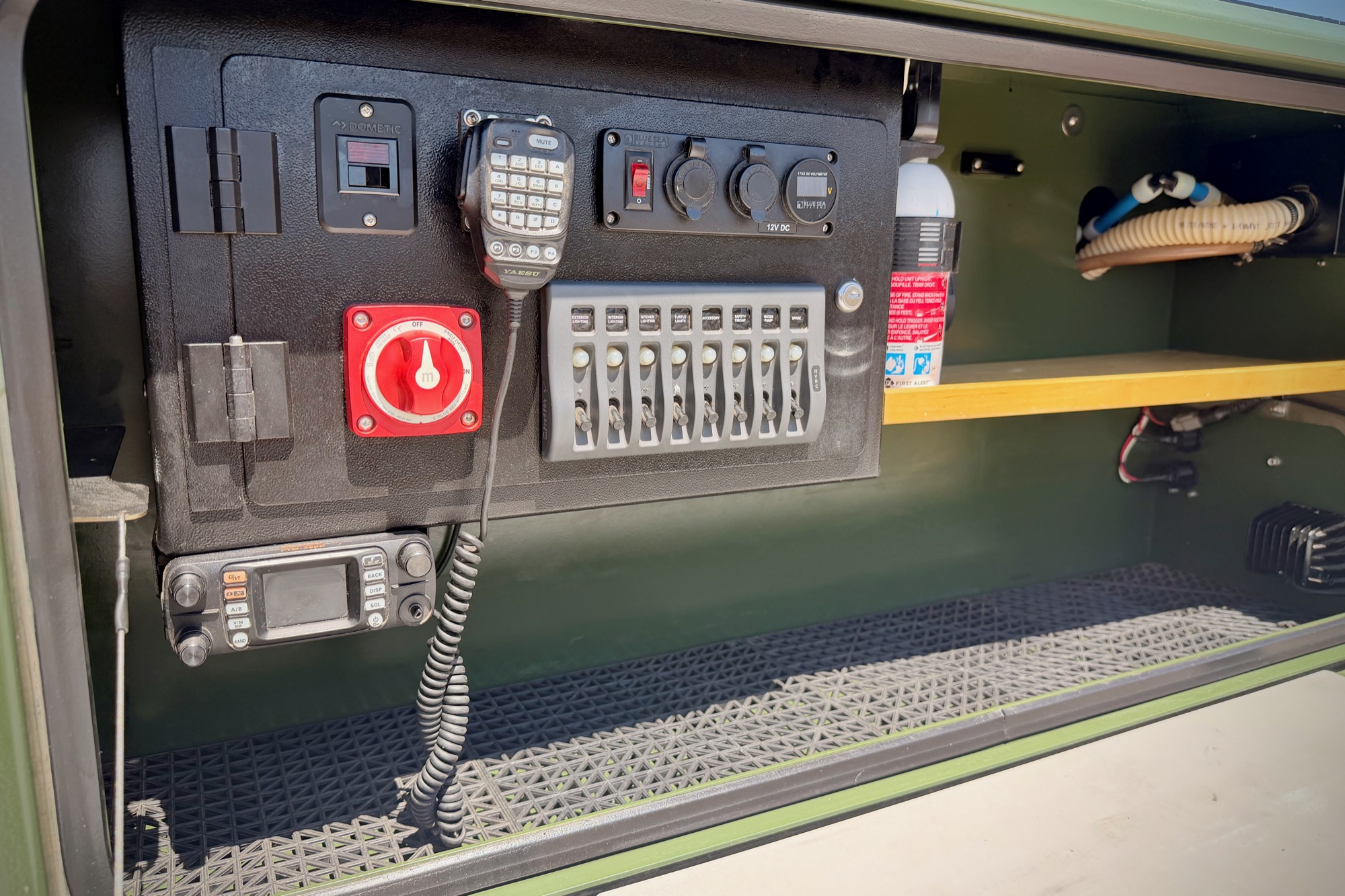

Electrical & Power

Power station
Goal Zero Yeti 1500X — 1,500 Wh
Inverter
2,000 W pure sine wave
Charging
10A DC-DC (7-pin) · 100W Renogy solar · 10A shore

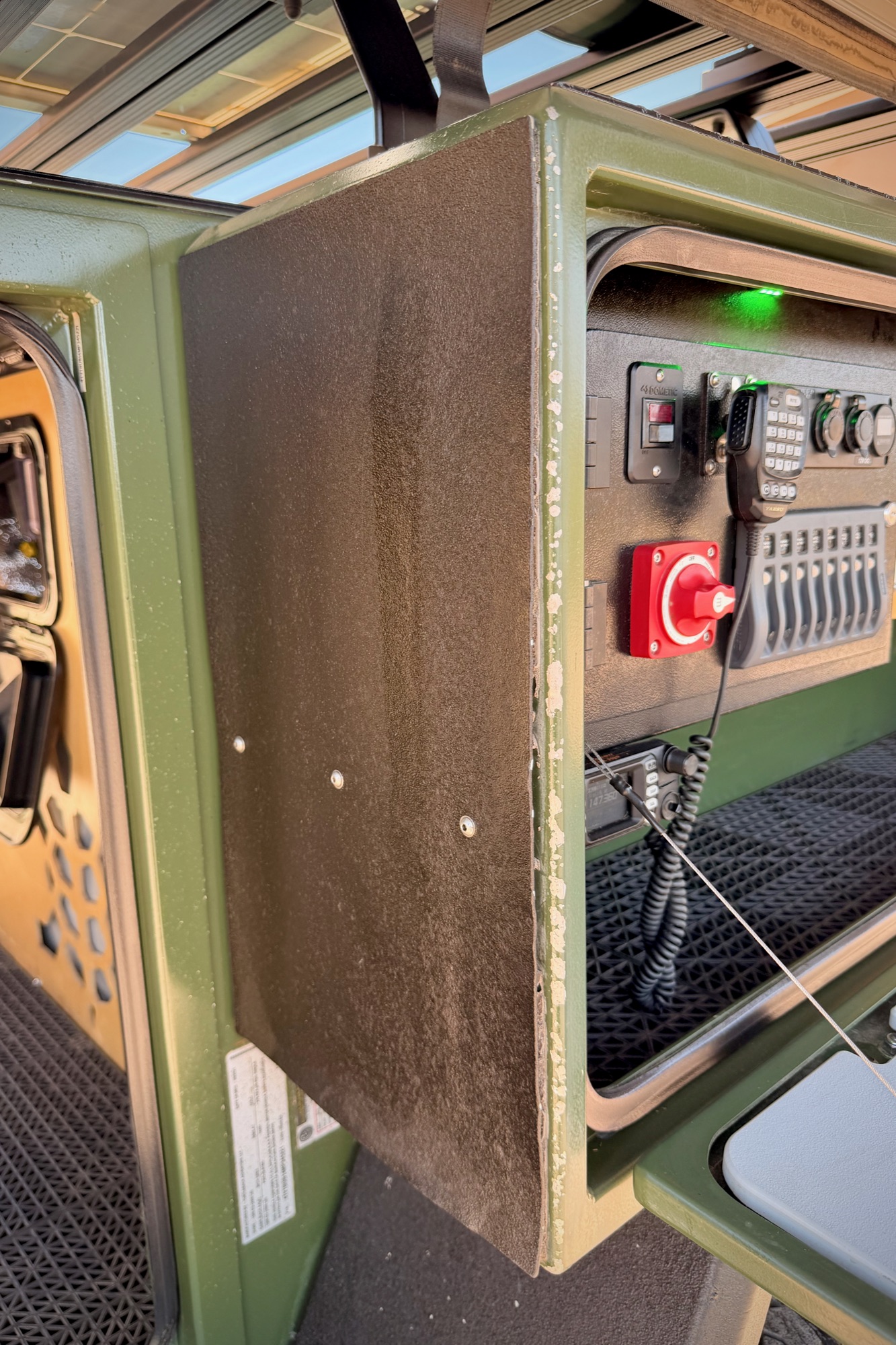

Aux panel
8-circuit Blue Sea breaker panel
Architecture
Portable Yeti — removable, no hard-wired bank

Comms & Lighting

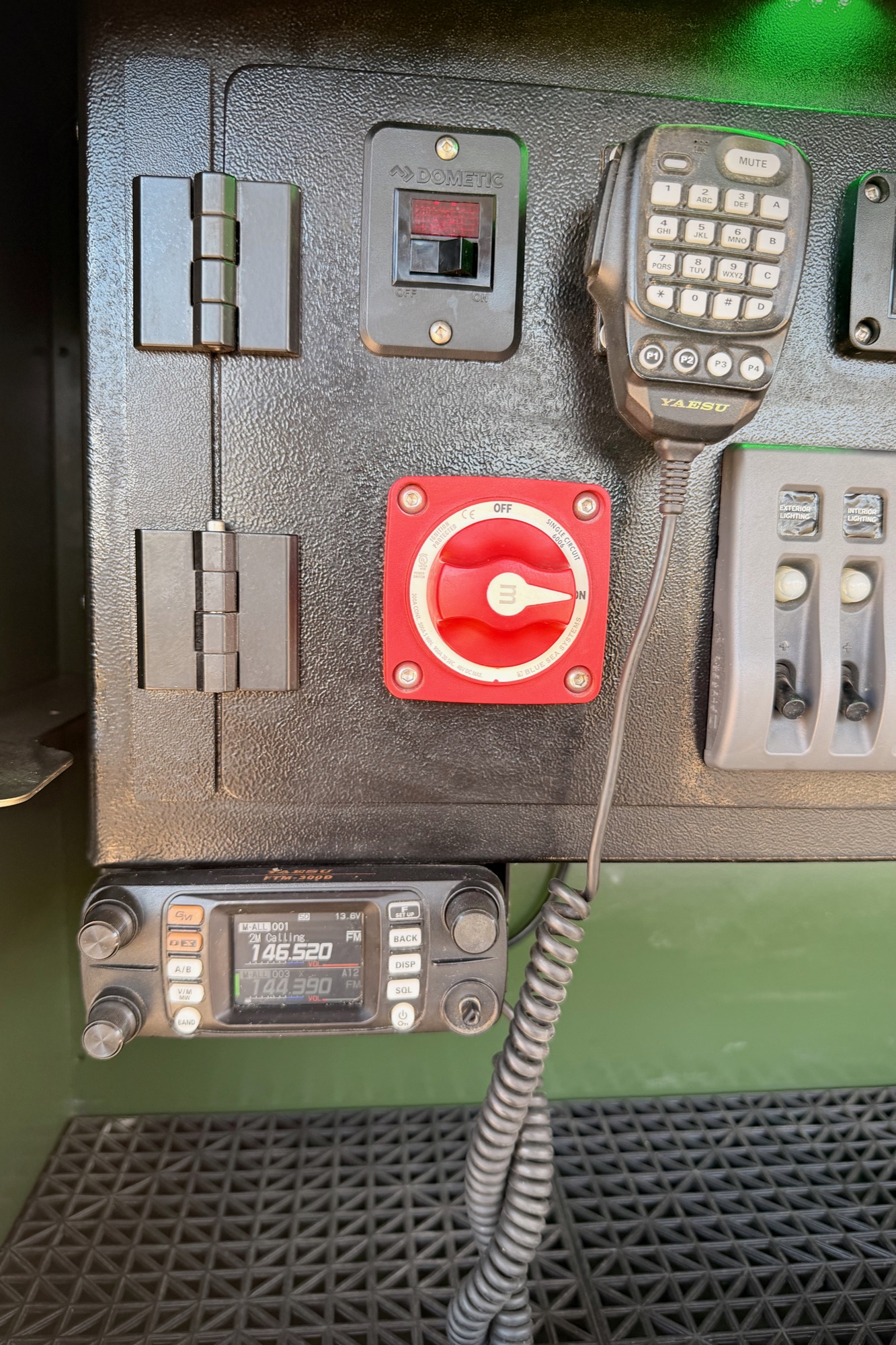

Ham radio
Yaesu FTM-300D — MARS-modified for GMRS
Signal booster
weBoost — antenna currently removed
Flood lights
Rigid D2 (rear)
Rock lights
KC RGB
Lighting
Interior & exterior LED

Water System

Capacity
48 gal total — 42 fresh + 6 heater
Water heater
Dometic 6-gal propane — mount reinforced
Purification
Guzzle H2O filtration & sanitization — relocated, with maintenance hatch
Drinking spout
Dedicated galley spout for filtered water
Pump
12V on-demand
Outdoor shower
Plumbed hot/cold

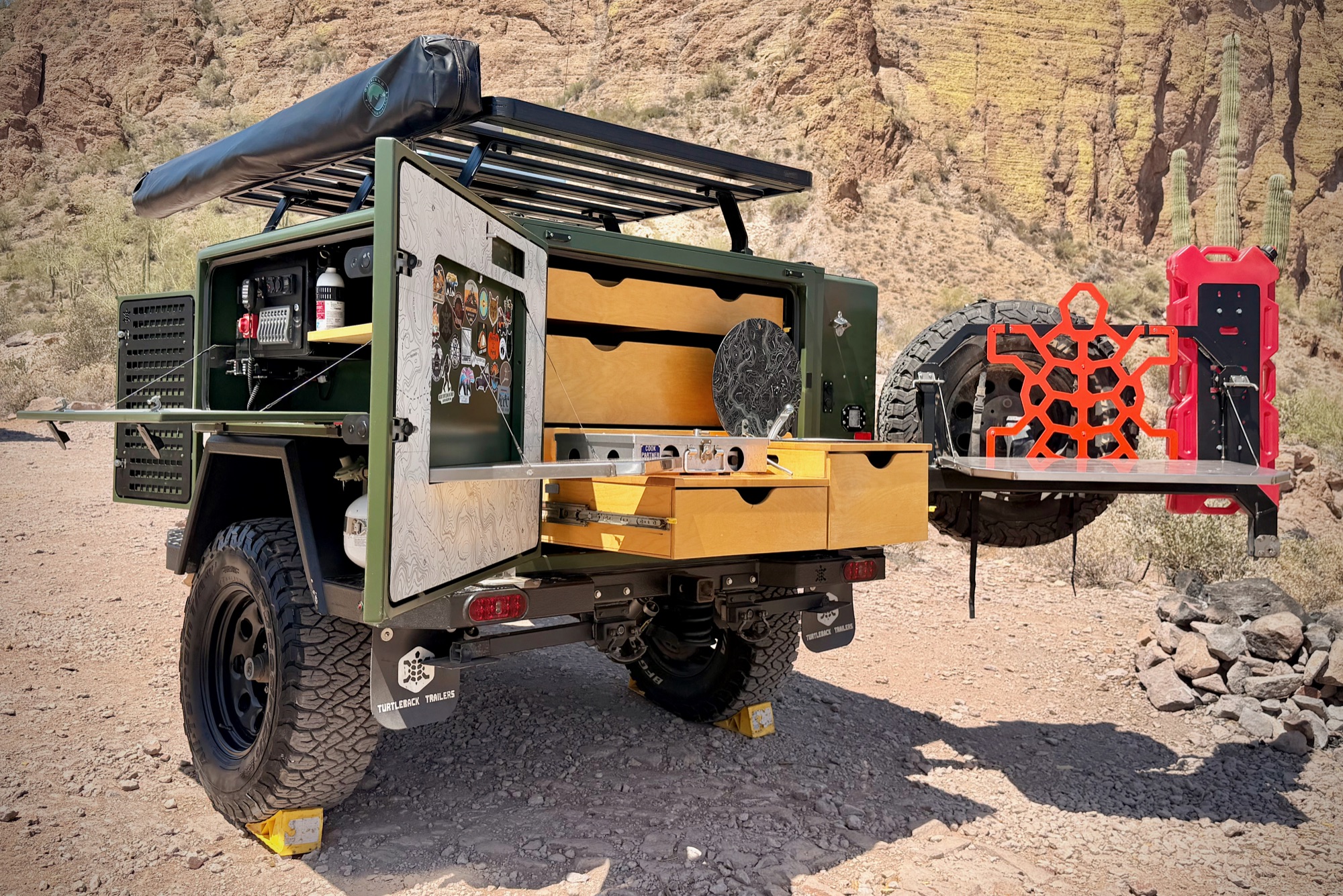

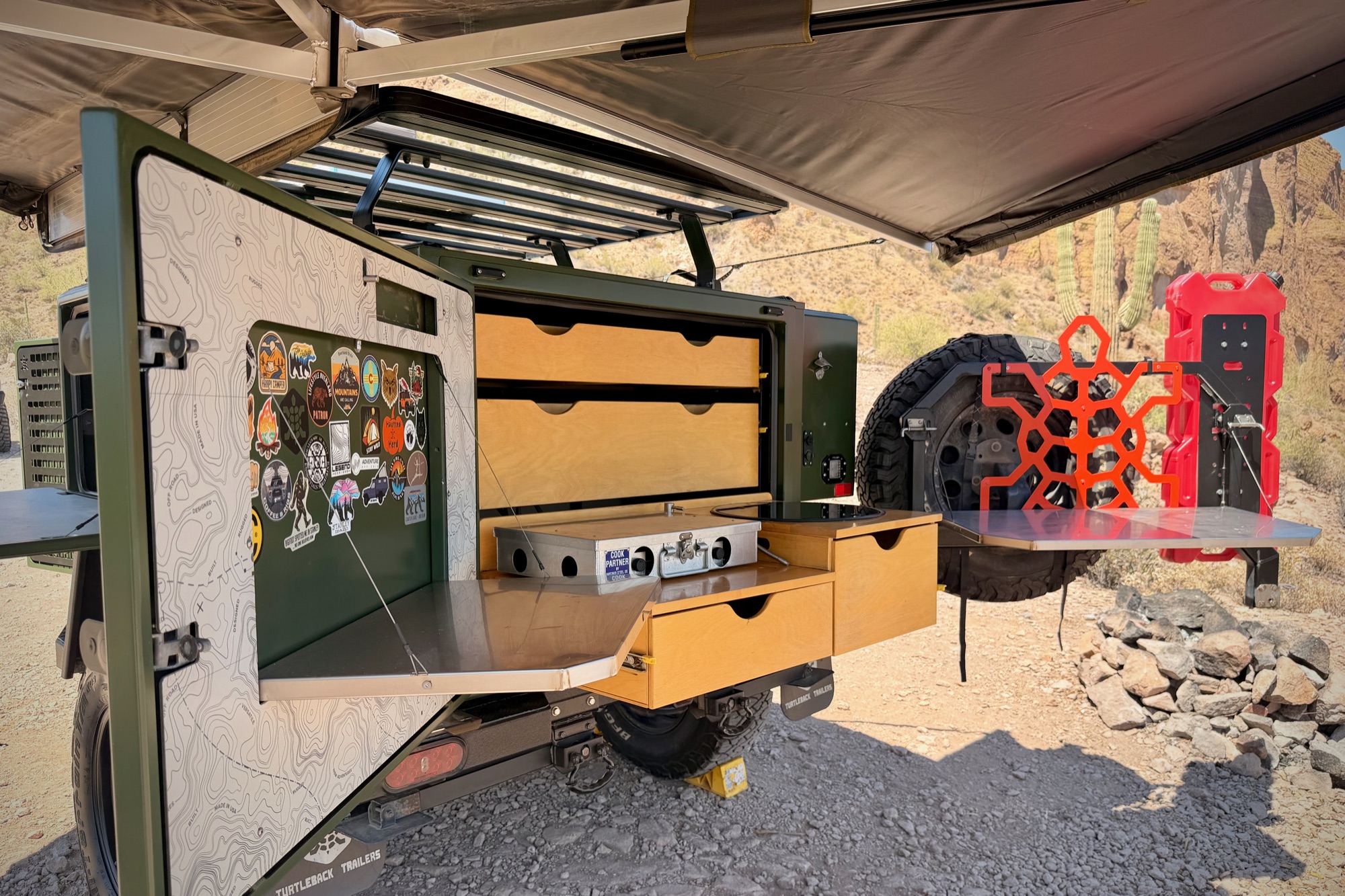

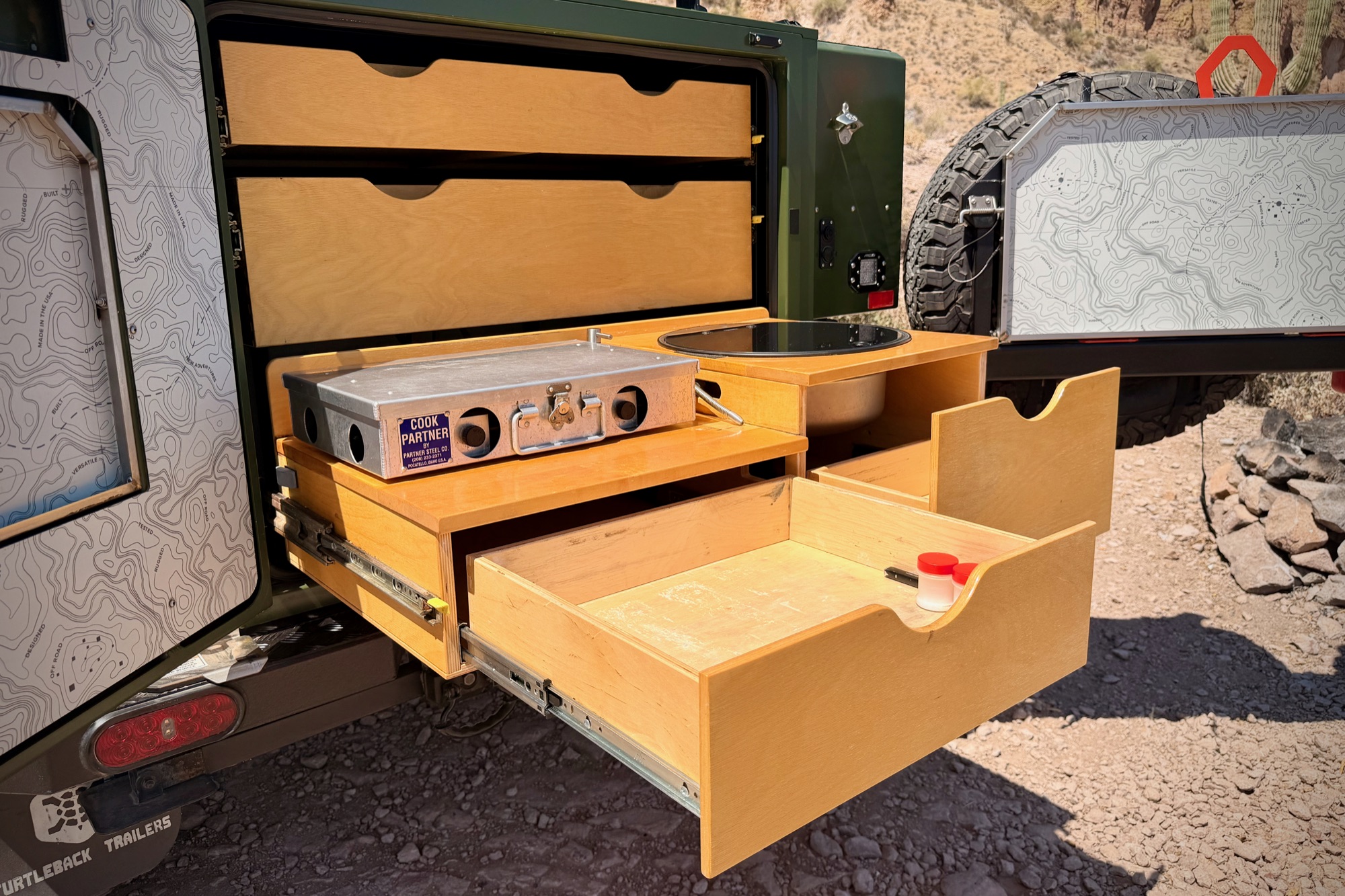

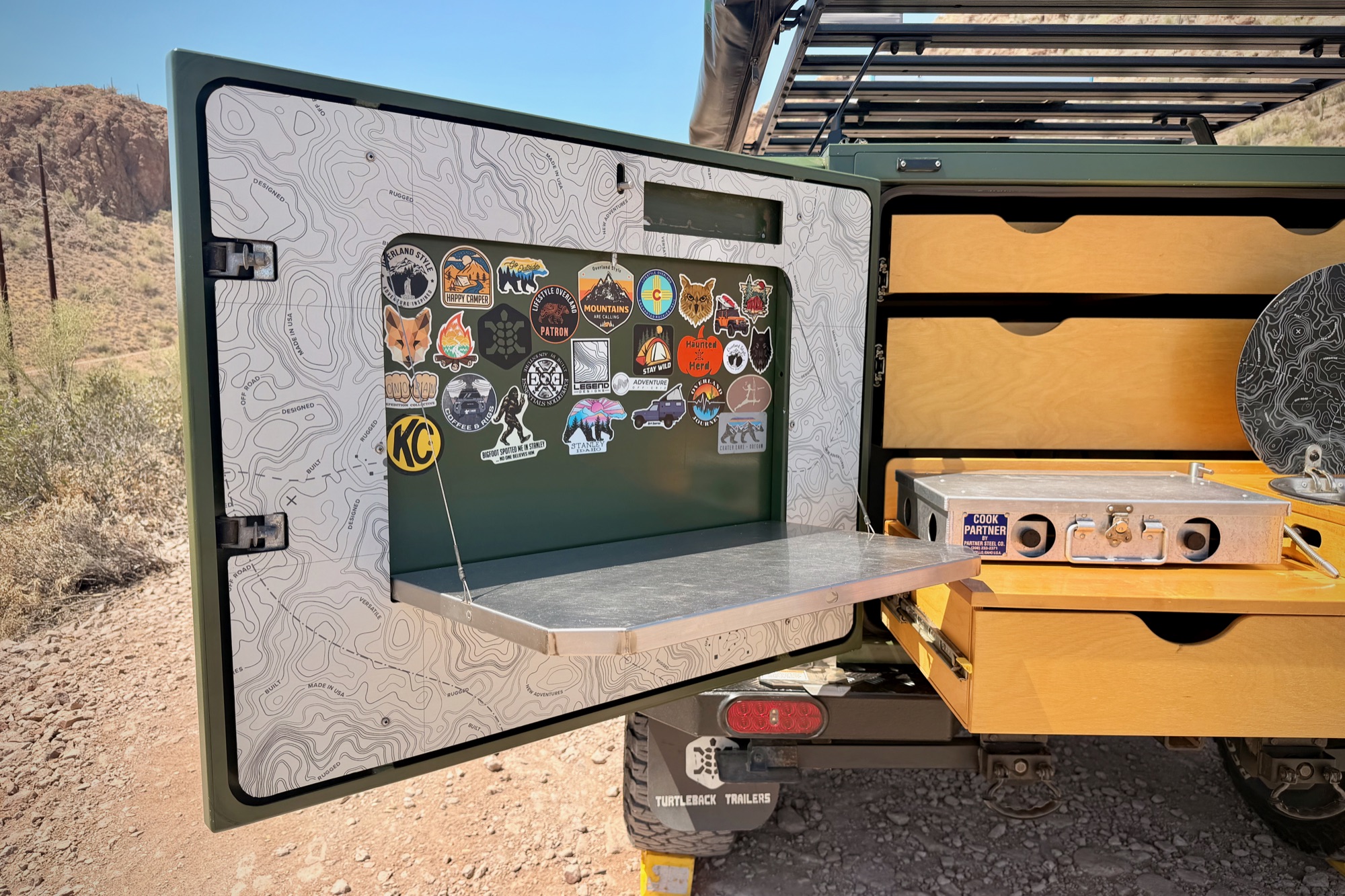

Galley & Kitchen

Galley

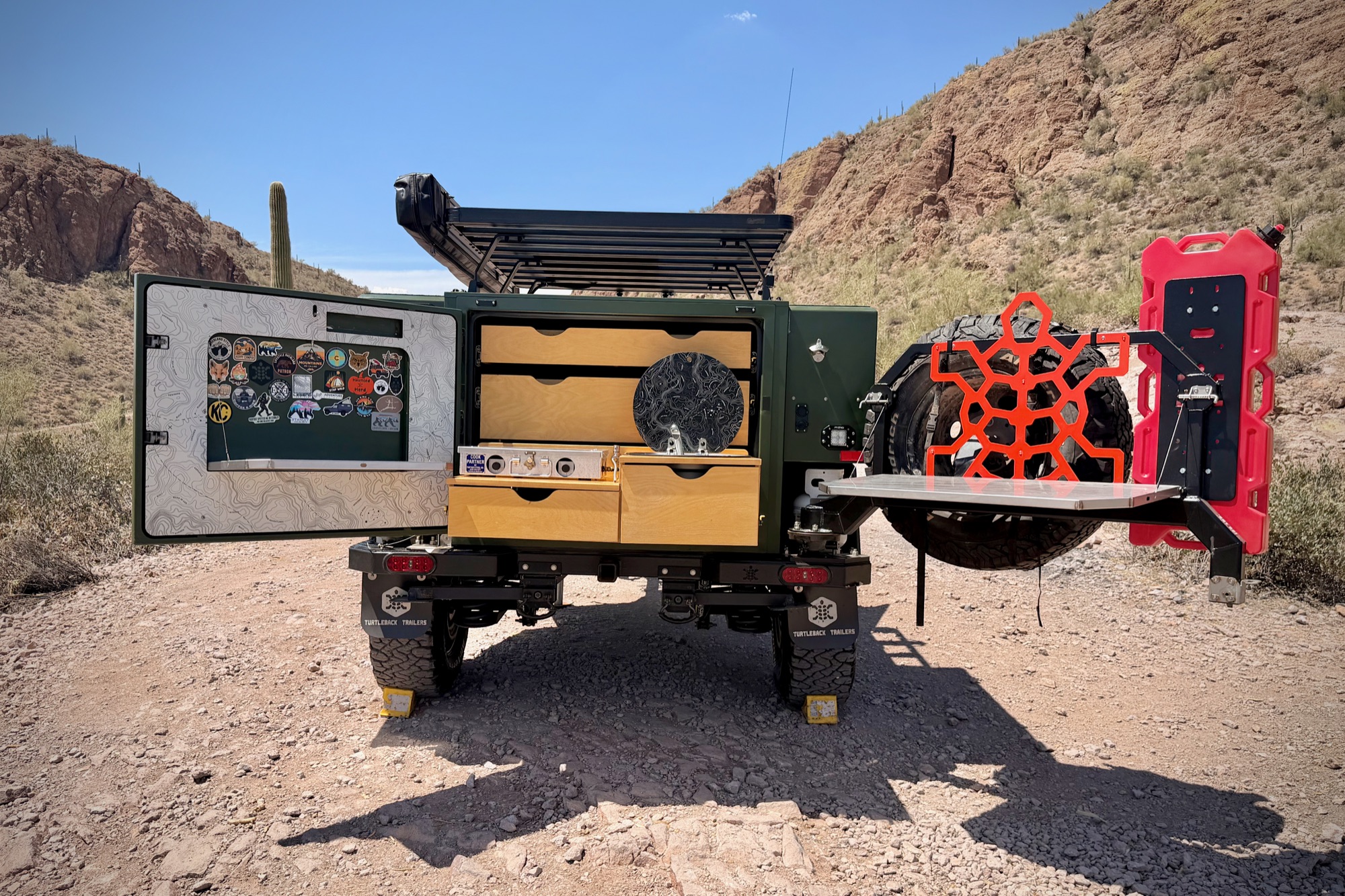

Slide-out rear galley

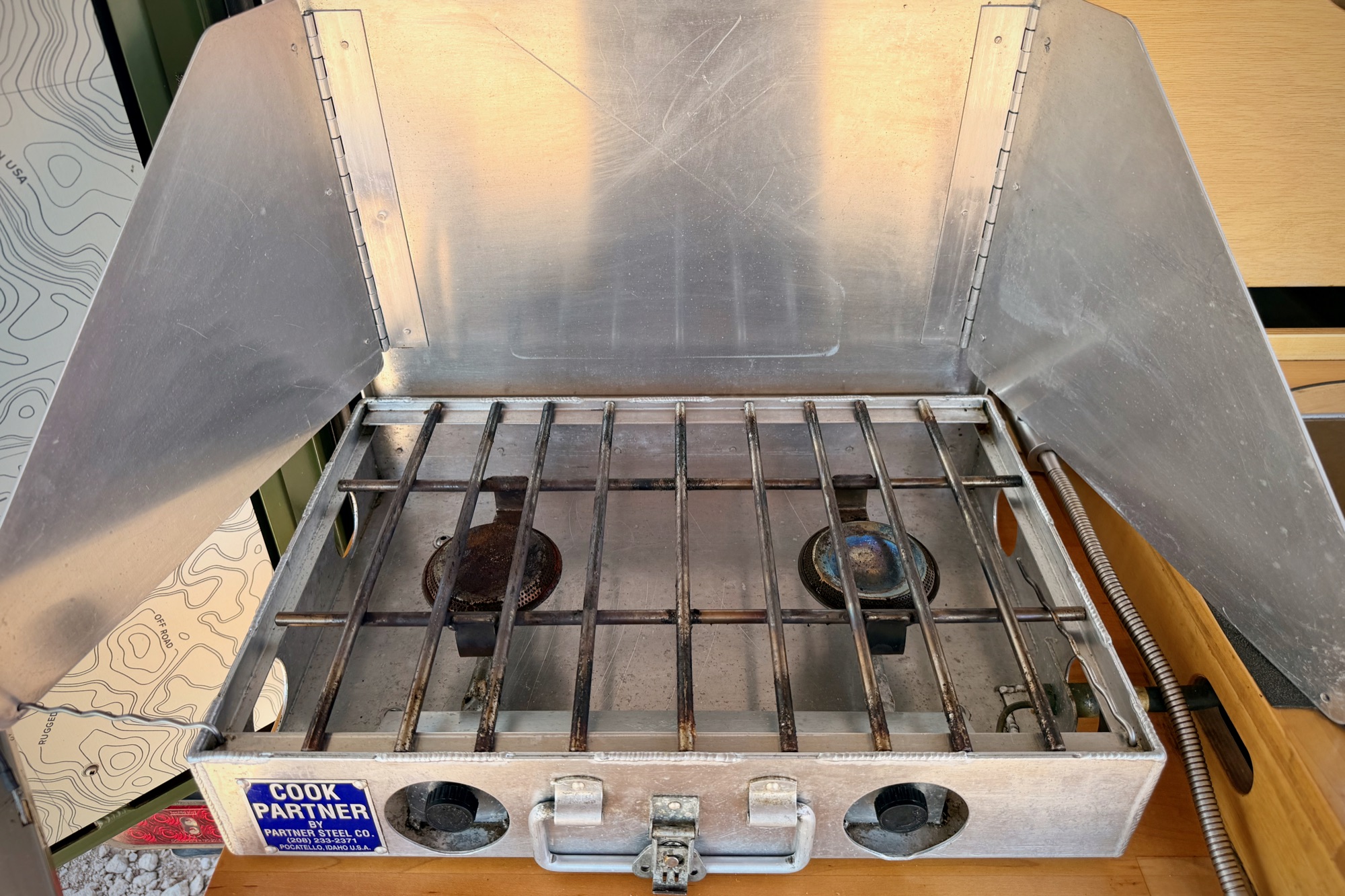

Stove
Cook Partner 2-burner steel stove

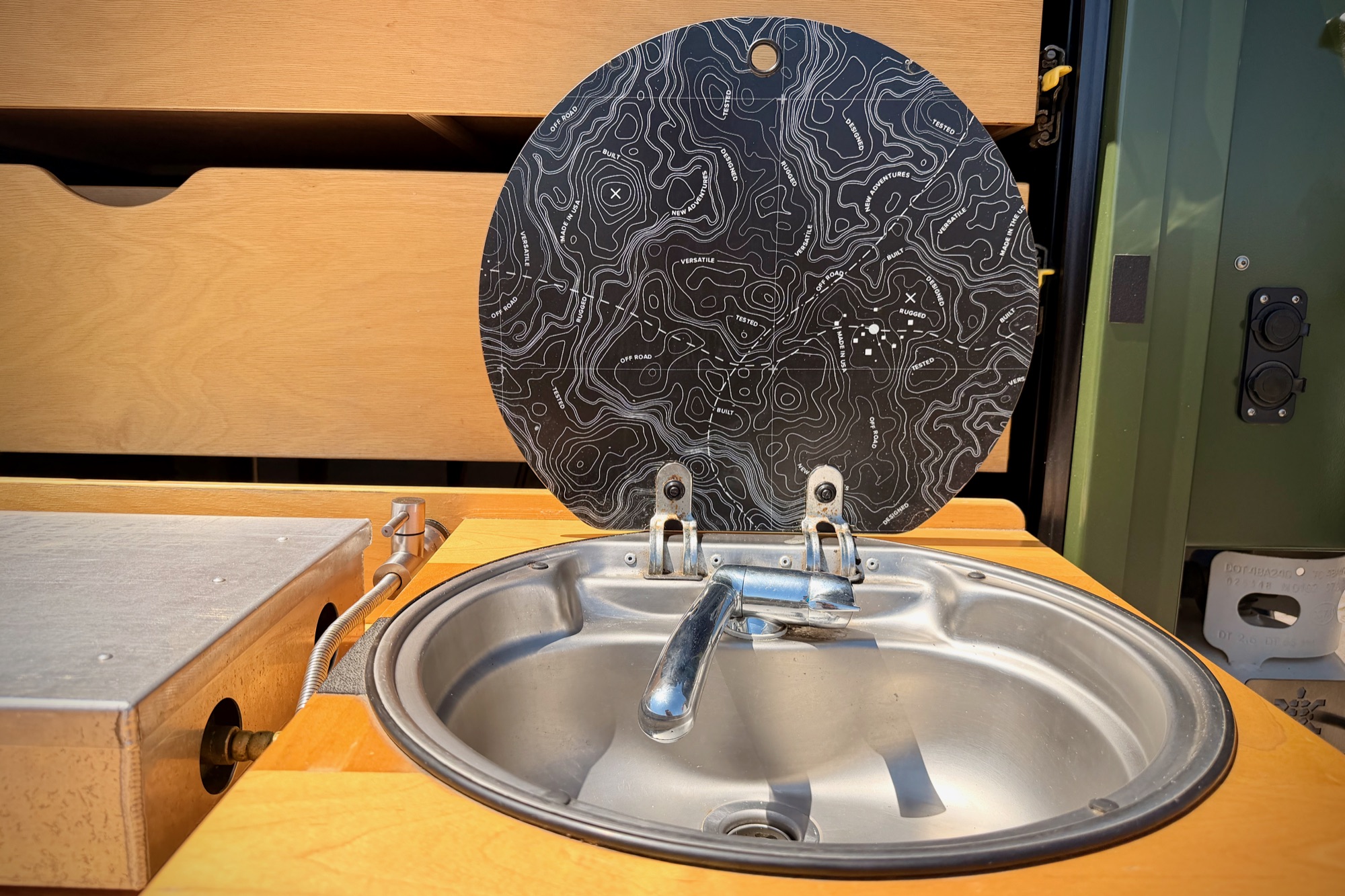

Sink
Stainless, hot & cold
Finish

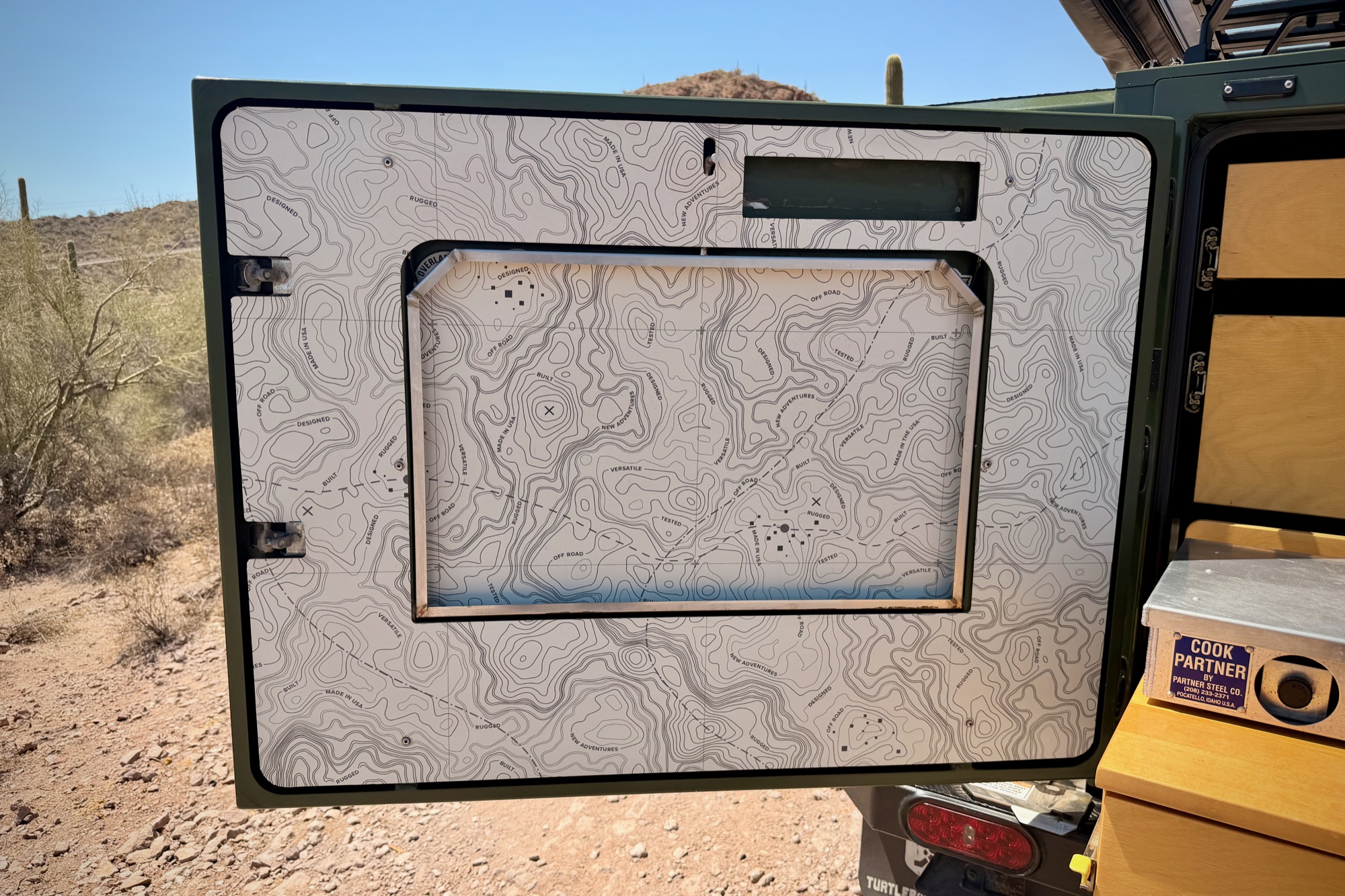

Topo-vinyl wrap — door, drop tables & sink underside
Cutting board
Custom walnut
Utensils
Front Runner set + Turtle Claws
Refrigeration
Fridge slide (confirm inclusion)

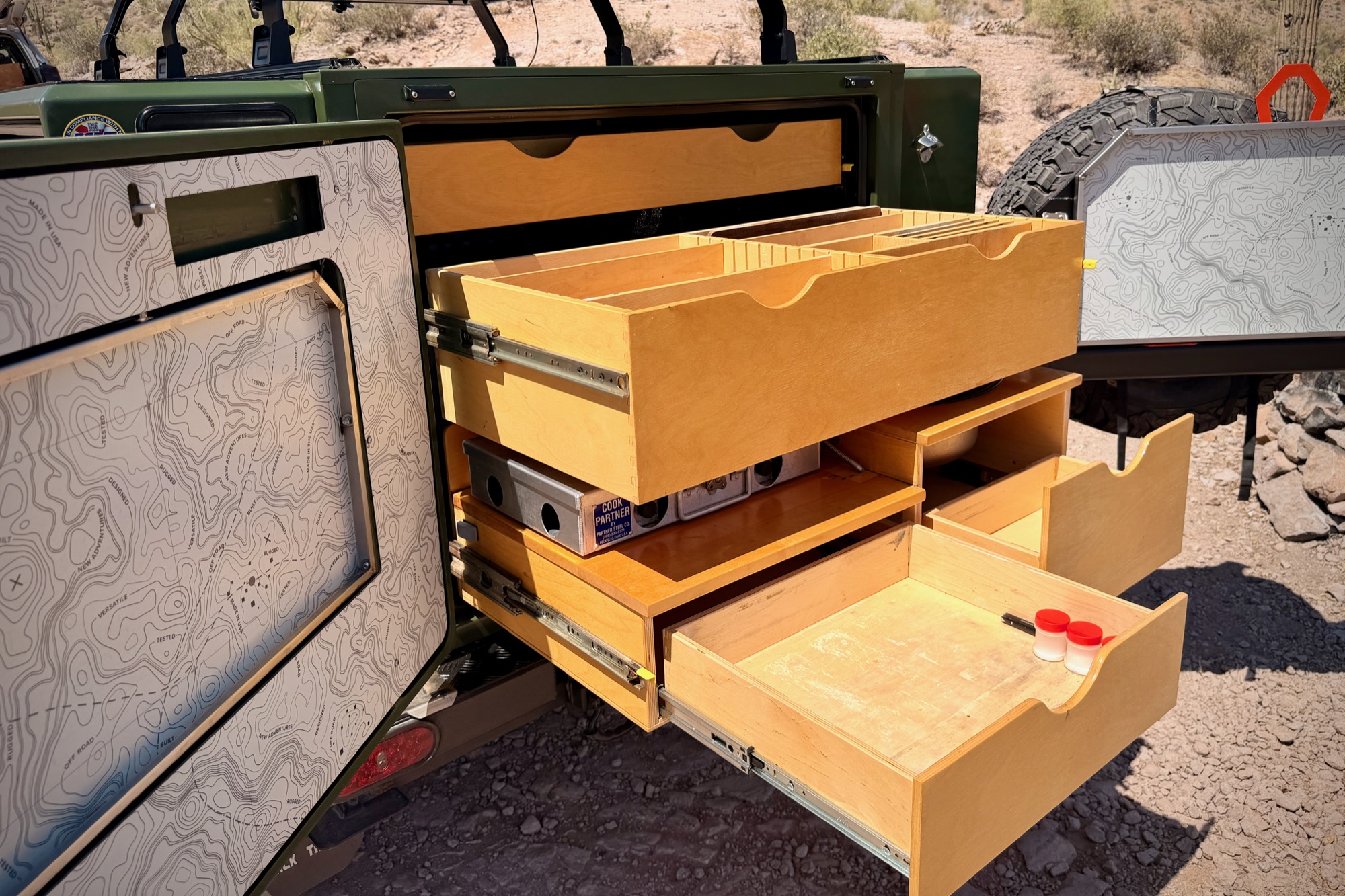

Storage

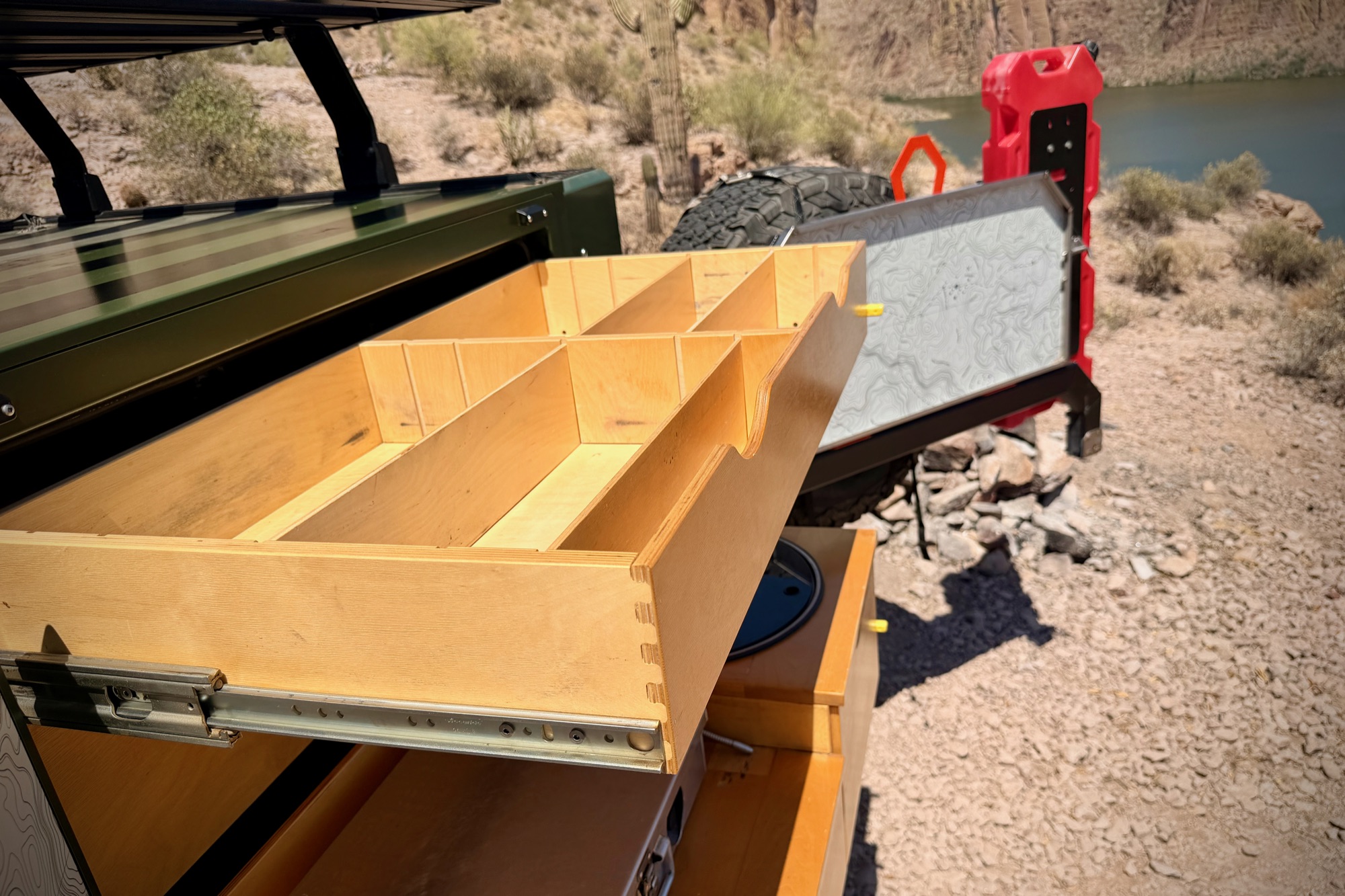

Locking drawers & weather-sealed side doors

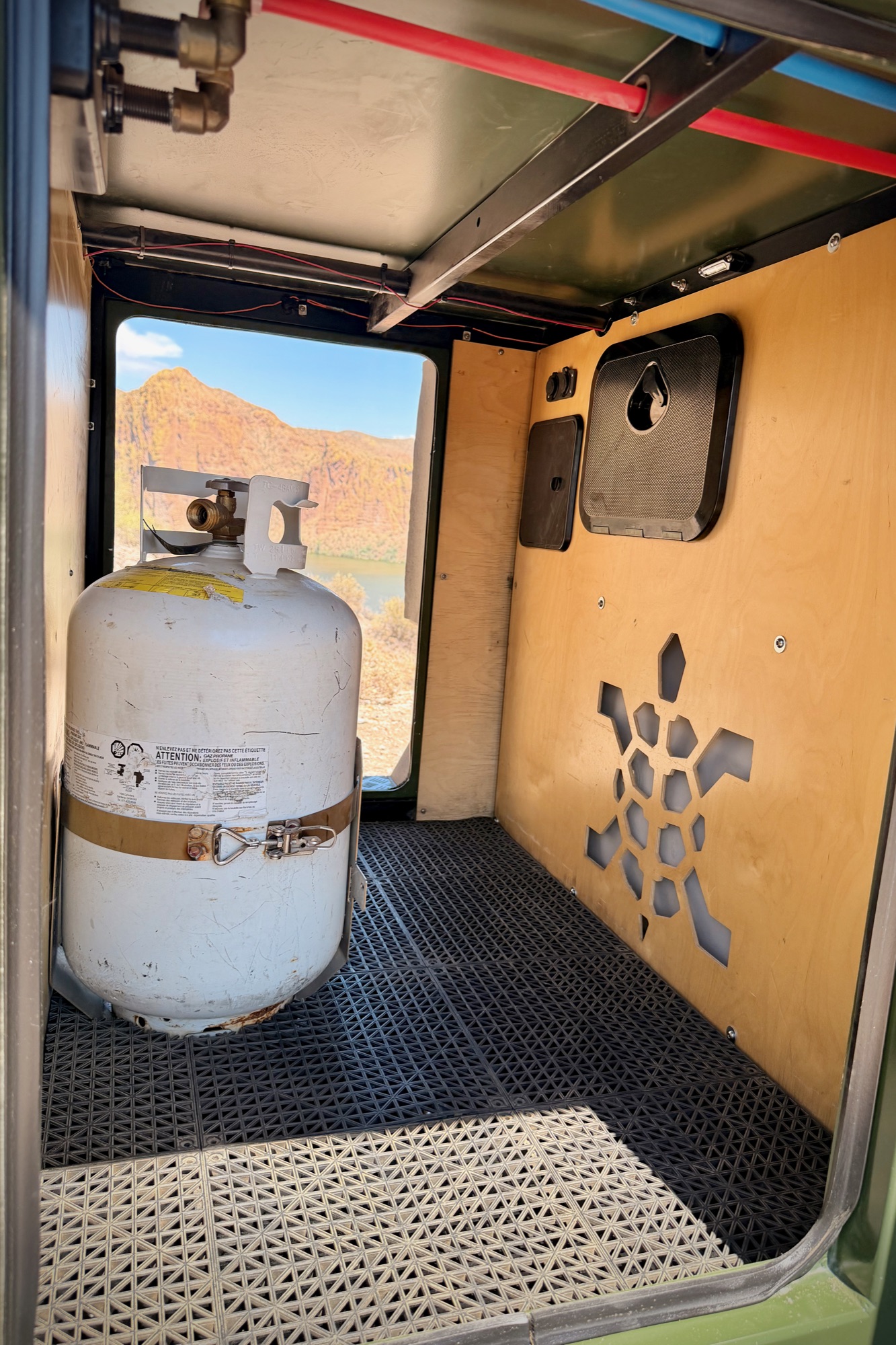

Propane & Fire

Bulk tank mount
Chassis-secured bulk propane mount
Propane tank
30 lb tank included
Fire pit
Square propane fire pit included

Storage & Protection

Door panels
MOLLE on storage doors
Nose box
Bed-coated impact panels
Box tops
Diamond plate
Box floors
Rubberized raised floors — gear stays dry

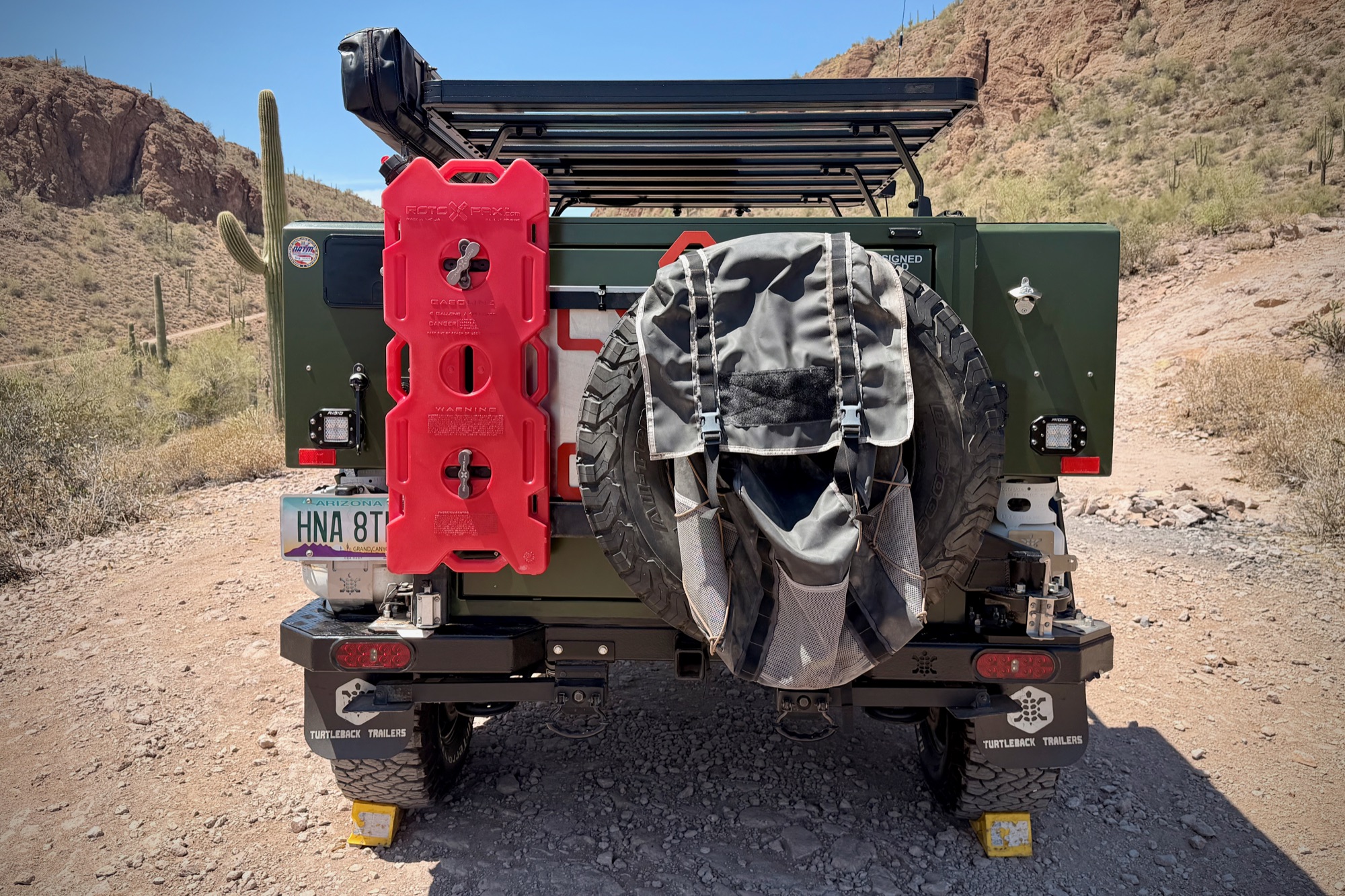

Aux fuel
RotopaX 4-gal carrier (rear)
Stabilizers
ARK corner steadies

Roof, Rack & Camp

Roof rack
Front Runner Slimline aluminum
Awning
OVS 270° (driver-side mount)
Solar
100W Renogy rigid panel on rack
Rack mounts
Front Runner antenna + shovel mounts
Rooftop tent
Present — confirm inclusion
Prep table

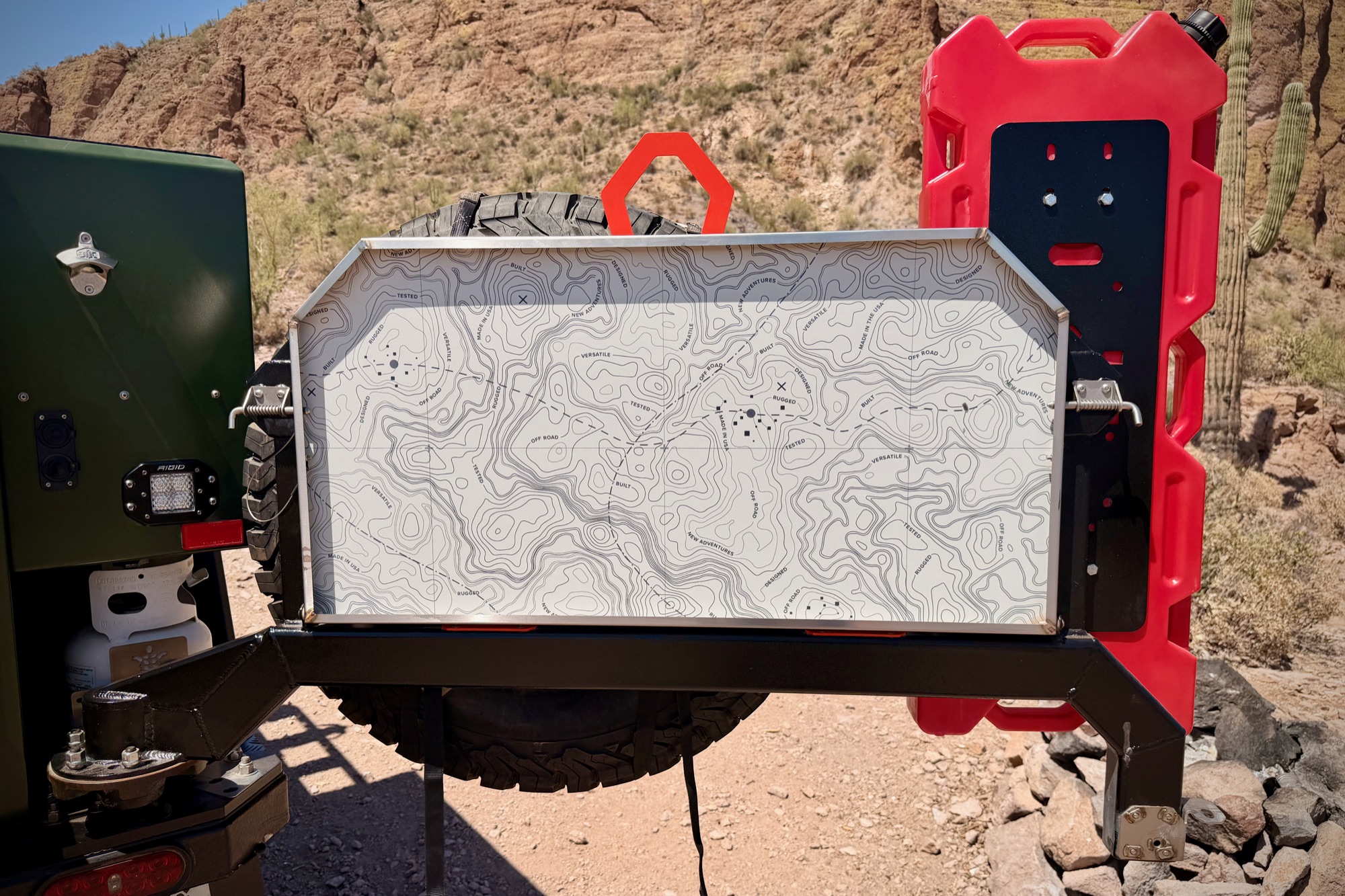

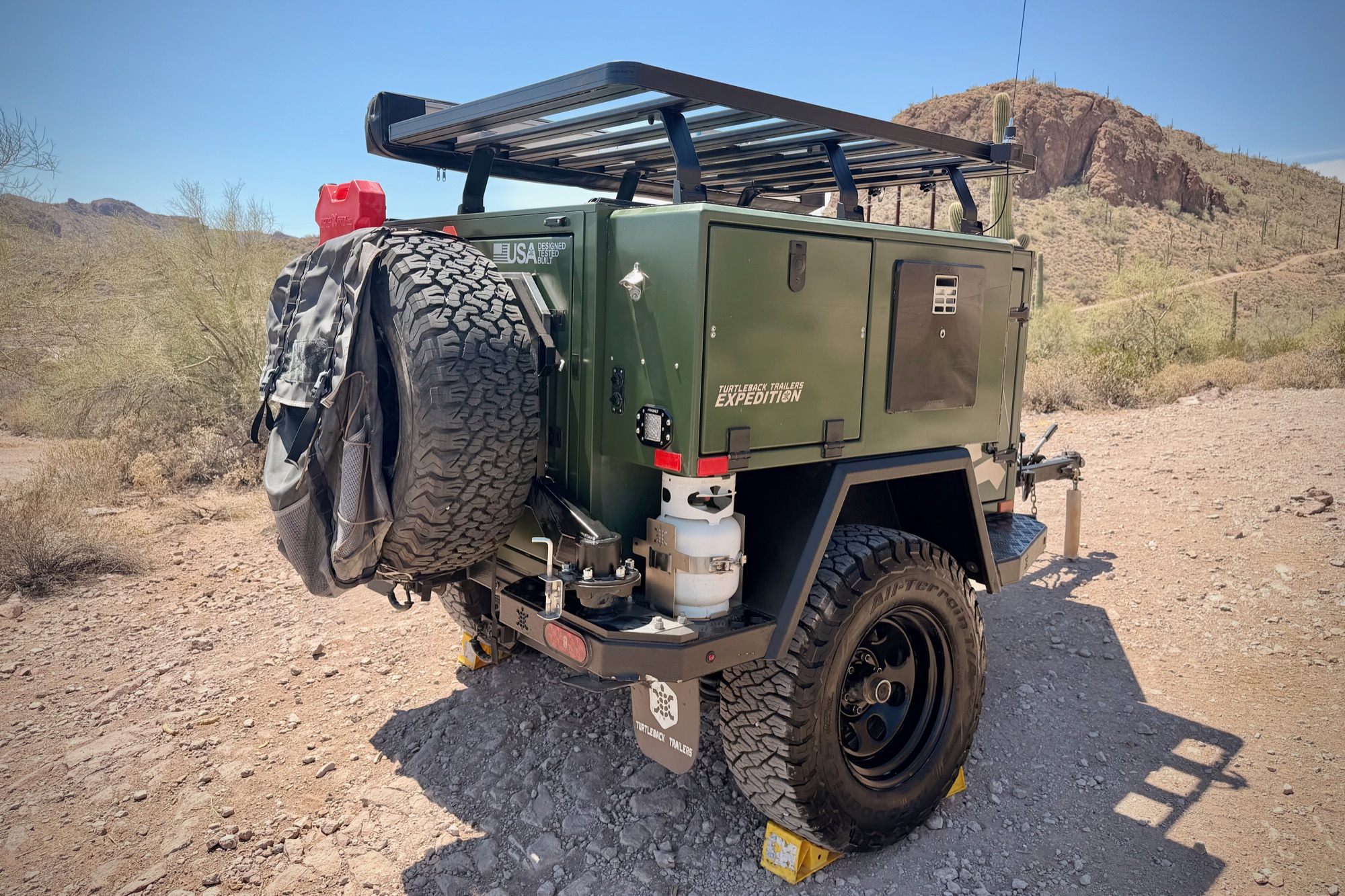

Fold-down on spare-tire swing arm

Included Spares & Redundancy

Spindles
Complete 2nd set — Timbren 3500 HD bolt-on
Shocks
2nd set of Icon shocks — freshly rebuilt
Bearings
Two sets — packed & vacuum-sealed
Hub
Spare wheel hub

Figures compiled from Turtleback published specifications and owner records. Items marked with a dotted underline are confirmed in person at sale; exact weights, dimensions, and equipment inclusions verified before purchase.

Full Disclosure

Mechanically rebuilt. Honestly worn. Ready to roll.

I'll be straight with you: this trailer has lived a full life in the field. The olive drab body carries real rock chips and scrapes — earned on actual trails, not parking lots. I call them trail badges, and I mean that without apology. What I won't sell you is the fiction that a well-used expedition trailer looks showroom-new. What I will tell you is that mechanically, this rig is about as close to perfect as a used trailer gets. If you're buying a trailer to actually go places, you want one that's already been sorted — not one you'll have to sort yourself the hard way.

  • Strength: Suspension Fully replaced in 2023; shocks rebuilt with ≈ 5,000 miles on them
  • Strength: Tires Two new BFGoodrich KO3 tires, Load Range E
  • Strength: Water heater Mount reinforced — a known stock failure point, now resolved
  • Strength: Purification Guzzle H2O relocated to a more secure, serviceable mount
  • Honest note: Use Active field use since 2021 — trailers carry no odometer; the measured mileage is ~5,000 mi on the rebuilt shocks
  • Honest note: Cosmetics Honest rock chips, scrapes, and trail patina from real field use
  • Strength: Finish Bedlined black chassis; Front Runner roof rack in good functional condition

Straight Answers

Frequently Asked Questions

Upgrades & Mods

Why is the roof rack different from stock — and is that a good thing?

I replaced the stock rack with a Front Runner Slimline-style aluminum rack, and it's one of the best upgrades I made. It's substantially lighter than the factory rack, which matters when you stack gear up high — lower weight up there means better articulation and handling on rough terrain. It's also far more modular, so you can mount Rotopax, lighting, or other accessories with purpose-built hardware instead of improvised clamps. Every owner I know who's made this swap has never looked back.

Why was the Guzzle H2O system relocated — does that change how it works?

It works identically; I relocated it purely for mounting security and serviceability. In the stock spot it was exposed to more vibration and harder to reach for filter changes on the trail. The new location is more protected, better braced, and far easier to service in the field. I've done this relocation on other Turtlebacks based on owner feedback, and the day-to-day improvement is immediately noticeable.

Maintenance & Condition

The suspension is newer than the trailer — what happened, and what does that mean for me?

In 2023 I replaced the entire suspension system — not because of a failure, but because I know what these trailers see in the field and I refused to let worn components compromise performance or safety. The shocks were just rebuilt with only about 5,000 miles on them — essentially fresh suspension on a proven chassis. For you, it means the most wear-prone parts of the trailer are in like-new condition and you're not inheriting any fatigue from its first years.

Why was the water heater mount reinforced — should that concern me?

The opposite — it should reassure you. The water-heater mount was a known vulnerability on early builds; I identified it in my role as Turtleback's field tester before it became widespread. The stock mount wasn't robust enough for sustained off-road vibration, and owners who didn't address it eventually dealt with loosening or damage. I reinforced it properly. You're buying the version of this trailer that's already had the problem solved — not the one where it's still waiting to happen.

What's the condition of the body and exterior?

Straight answer: it's been used hard and looks like it. The olive drab body, bedlined chassis, and burnt-orange emblem all show the rock chips and trail scrapes that come from real overland use. I call them trail badges because that's what they are — evidence of a trailer that's been places, not a showpiece that's been stored. Mechanically it's near perfect; cosmetically it carries the honest patina of an expedition trailer with a real history. If you want something that looks factory-fresh, this isn't your trailer. If you want one that's ready to keep going, this is exactly it.

Specs & Capability

Why does it matter that it has the Timbren HD 3500 axle-less spindles?

This is the first production Turtleback that shipped on the Timbren HD 3500 axle-less system, and it's not a trivial distinction. The HD units are rated to 3,500 lb and replace a traditional axle with independent suspension points — significantly more wheel travel, better ground clearance under the trailer, and a more compliant ride on rough terrain. No solid axle to snag a rock, no central tube limiting belly clearance. On the trail that's capability and durability most comparable trailers simply can't match.

What is the Cruisemaster DO35 coupler and why does it matter?

The DO35 is an off-road coupler that articulates 360° through a poly-block design, and this was the first Turtleback to ship with one. On a standard ball hitch, extreme flex between tow vehicle and trailer creates stress at the coupler that can cause binding or instability on technical terrain. The DO35 absorbs that articulation through the poly-block rather than fighting it, keeping the trailer tracking correctly on ledges, V-ditches, and off-camber lines. It's now considered best practice in the overland space — and this trailer has had it from day one.

What tow vehicle do I need?

It depends on your loaded weight, but the practical pairing is a mid-size 4x4 and up — think Tacoma, 4Runner, Land Cruiser, Tundra, Wrangler, or equivalent body-on-frame trucks and SUVs. Four-wheel drive is strongly recommended if you plan to take this trailer where it was designed to go. Tell me what you're towing with and I'll give you a direct answer on compatibility.

Buying

Why buy a heavily-used trailer instead of something newer with fewer miles?

Because on an overland trailer, provenance and maintenance history matter far more than miles. I'm the person who tested components for Turtleback before they went into production, who runs the Owners Group, and who owners across the country contact when something goes wrong. This trailer has been maintained by the one person who knows these trailers better than anyone. The suspension is fully replaced, the shocks freshly rebuilt, new KO3 Load Range E tires are on it, and every known vulnerability has been addressed. You're not buying a tired trailer — you're buying a piece of Turtleback history kept in near-perfect mechanical condition by its most knowledgeable owner.

What comes with it — and can you help me learn to use and maintain it?

It comes loaded: the Goal Zero Yeti 1500X power system, Front Runner roof rack, Guzzle H2O purification, OVS 270° awning, propane fire pit, RotopaX fuel carrier, and all the modifications described here. It also carries its own spare drivetrain — a complete second set of Timbren 3500 HD bolt-on spindles, a freshly rebuilt second set of Icon shocks, two sets of pre-packed wheel bearings, and a spare hub — so a damaged corner is a trailside fix, not a flatbed call. Because I ran the Owners Group and the herd events, I'm glad to walk the right buyer through the systems, the maintenance schedule, and field best-practices. The complete equipment list is confirmed in person at the walkthrough so there are no surprises either way.

Where is it located, and is it titled and registered?

It's located in Tempe, Arizona. Reach out and I'll share complete title and registration details — I'll have full documentation ready for the buyer and will make the transfer process as clean and simple as possible.

What's the asking price?

The asking price is $22,000. This is a piece of Turtleback history with a very specific set of first-production distinctions, expert-level maintenance, and fully refreshed wear components — priced fairly for what it actually is. Reach out and let's talk; I'm happy to walk you through every detail behind that number.
